JIS Eye Swivel Single Eye Type.
Also called as JIS Type Single Eye Swivel, Chain Swivel or Swivel Shackle.
JIS Eye Swivel Single Eye Type is made of superior carbon steel with zinc plated on the surface.
This type swivel is ideal for marine, fishing and trawling gear applications.
| Technical Notes | Conform to JIS Type |
| Material | Superior Carbon Steel |
| Processing | Drop Forged |
| Surface Finished | Hot Dip Galvanized , Electric Galvanized |
| Size | 13mm , 16mm , 19mm , 22mm,29mm |
| WLL | 1T – 5T |

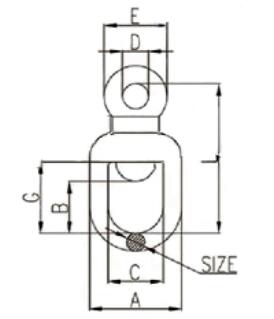

Size (mm) | Weight (kg) | WLL (ton) | Dimention | ||||||
| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | G (mm) | L (mm) | |||
| 13 | 0.5 | 1 | 60 | 35 | 36 | 17 | 41 | 48 | 100.5 |
| 16 | 0.94 | 1.5 | 72 | 43 | 40 | 23 | 55 | 60 | 124 |
| 19 | 1.46 | 2.5 | 82 | 45 | 45 | 26 | 64 | 66 | 142 |
| 22 | 2.21 | 5 | 93 | 53 | 49 | 29 | 73 | 75 | 170 |
| 29 | 4.4 | 3 | 116 | 70 | 58 | 38 | 96 | – | 196 |
