Chain Swivel Drop Forged Stainless Steel.
Also called as mooring swivel or swivel shackle.
It is usually fitted between the anchor and the chain cable to prevent the chain cable from twisting and kinking.
Chain Swivel Drop Forged Stainless Steel is made of Stainless steel 316 or 304 with superb rust/corrosion resistant performance.
And it is widely used for marine and industrial rigging applications.
| Material | Stainless Steel AISI 316/ AISI 304 |
| Processing | Drop Forged |
| Size | 137.3mm , 169mm, 183mm, 200mm, 214mm |

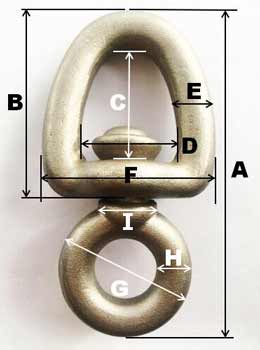

| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | Weight (kg) |
| 137.3 | 80 | 52.3 | 40 | 16.5 | 71.25 | 55 | 14.3 | 24.3 | 0.66 |
| 169 | 106 | 62 | 45 | 22 | 89 | 62 | 17 | 32 | 1.43 |
| 183 | 115 | 67 | 48 | 23.5 | 96 | 69 | 18.3 | 30 | 1.815 |
| 200 | 124.5 | 73 | 51.4 | 28 | 102.4 | 74.7 | 20 | 36 | 2.23 |
| 214 | 134 | 76 | 55 | 32 | 111 | 80 | 25 | 36 | 3.08 |
