Trawling Chain Swivel Drop Forged Mild Steel.
Also called as trawling swivel or swivel shackle.
This chain swivel is ideal for fishing and trawling lifting or rigging applications where there is no need twists in chain, to relieve the pressure that cause by distorting and knotting when pulled tight.
| Material | Superior Mild Steel |
| Processing | Drop Forged |
| Surface Finish | Dipping Paint , Electric Galvanized |
| Size | 22mm , 25mm , 28mm , 32mm |

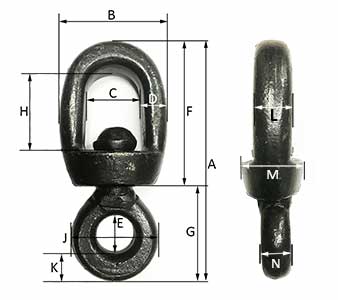

SIZE (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | M (mm) | N (mm) | Weight (kg) | WLL (T)(SF: 4:1) |
| 22 | 195 | 90 | 47.8 | 21 | 32.3 | 112 | 83 | 65 | 70 | 21 | 19.6 | 47 | 21.6 | 1.55 | 4 |
| 25 | 215 | 100 | 51.2 | 24 | 32.5 | 131 | 84 | 75 | 75 | 21 | 24 | 54.5 | 23.6 | 2.24 | 5 |
| 28 | 230 | 106 | 55.5 | 25.5 | 36 | 138 | 92 | 86 | 81 | 24 | 28 | 59 | 27.4 | 2.85 | 6 |
| 32 | 260 | 117 | 60 | 28.2 | 38.5 | 157 | 103 | 92 | 91 | 28 | 36 | 68 | 30 | 4.49 | 8 |
