Stainless Steel Swivel Eye Plate.
Stainless Steel Swivel Pad Eye features a ring that can rotate 360 degrees and is easy to install using screws.
Swivel Pad Eye is designed to use on boat decks for attachment points for rope, chain and cord.
Stainless Steel Swivel Eye Plate is ideal for marine, industrial, architectural applications.
This pad eye is made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
| Material | Stainless Steel AISI 304 / AISI316 |
| Processing | Stamping / Machining / Welding |
| Finish | Highly Polishing |
| Size | 5mm , 6mm , 8mm |

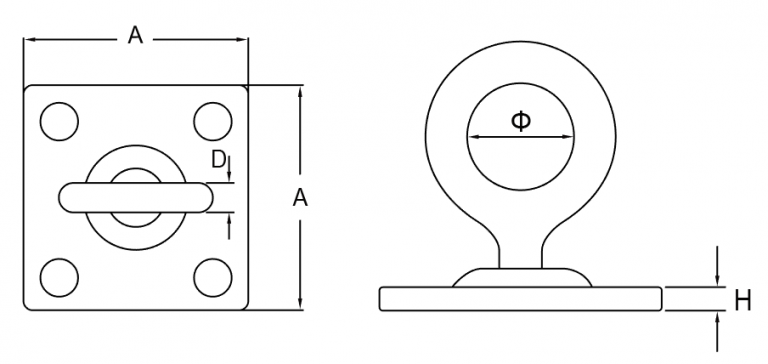

| D (mm) | A (mm) | Φ (mm) | H (mm) | WT (kg) |
| 5 | 35 | 15 | 3 | 0.035 |
| 6 | 40 | 18 | 3 | 0.077 |
| 8 | 50 | 19 | 3 | 0.148 |
