Stainless Steel Angle Bracket L Type.
Also called as Corner L Bracket made of Stainless Steel 304 or 316, it is widely used in home, factory and marine fields.
Easy to install. Specially designed with 90 degree right angle, is an important fastener to make furniture parts stay firm.
Stainless Steel Angle Bracket comes complete with stainless steel mounting screws.
It has excellent rust/corrosion resistant performance.
Used for supporting chair legs, shelves, cabinets, doors, various craft projects.
| Material | Stainless steel AISI 316 / AISI304 |
| Processing | Stamping / Machining |
| Finish | Highly Polishing |
| Tips | Drilled with 4 holes |

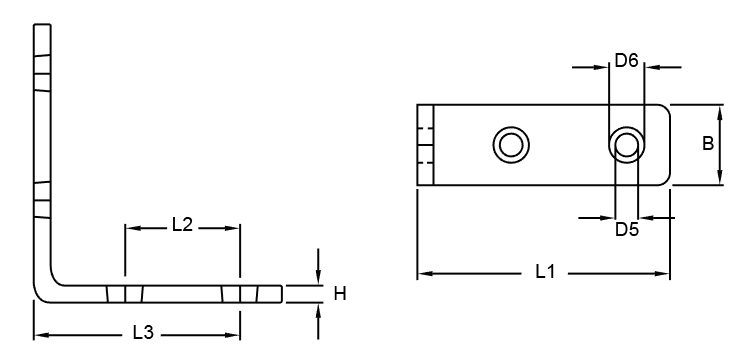

| L1 (mm) | L2 (mm) | L3 (mm) | B (mm) | H (mm) | D5 (mm) | D6 (mm) | WT (kg) |
| 31 | 13 | 25 | 12 | 3 | 4 | 7.3 | 0.013 |
| 46 | 20 | 38 | 13 | 3 | 4 | 7.3 | 0.023 |
| 61 | 30 | 51 | 15 | 3 | 4 | 7.3 | 0.035 |
