Stainless Steel Square Ring Plate.
It also called as a deck plate, Square Ring Pad Eye or Eye Plate.
Stainless Steel Square Eye Plate with Ring has a wide list of general use, such as on boat, on deck or household applications etc..
Ideal for sailing, boating, and many other marine applications.
This type pad eye hardware is an essential mounting accessory to any shade sail.
| Material | Stainless steel (AISI 316 / AISI 304) |
| Processing | Stamping / Machining / Welding |
| Finish | Highly Polishing |

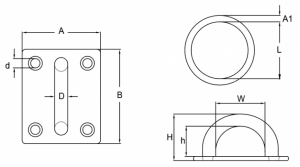

| D (mm) | A (mm) | B (mm) | H (mm) | h (mm) | w (mm) | d (mm) | A1 (mm) | L (mm) | WT (kg) |
| 5 | 30 | 35 | 20 | 12 | 13 | 4.5 | 5 | 30 | 0.041 |
| 6 | 35 | 40 | 26 | 17 | 17 | 4.5 | 6 | 35 | 0.069 |
| 8 | 40 | 50 | 32 | 21 | 21 | 6.2 | 8 | 45 | 0.137 |
| 10 | 48 | 660 | 39 | 26 | 26 | 6.2 | 10 | 50 | 0.218 |
