DIN5685C Long Link Chain Stainless Steel.
Chain DIN5685C is a sort of welded, round steel chain with long links, made of stainless steel 316 or 304 which is strong rust/corrosion resistant.
This stainless steel DIN5685 C long link chain should not be used for carrying loads, the static suspension of loads, and any critical lifting applications.
Sizes are available ranging from 2mm to 13mm.
| Technical Note | Conform to DIN5685 C |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Welded |
| Surface Finished | Highly Polishing |
| Size | 2mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,13mm |
| Tips | Rust/corrosion resistant performance. |

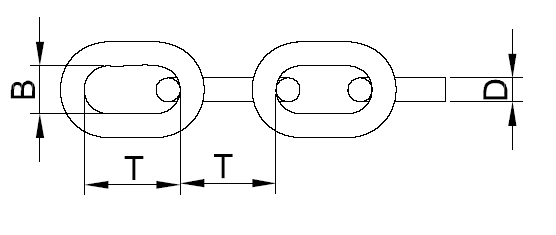

| SIZE | INSIDE LENGTH (MM) | OUTSIDE WIDTH (MM) | WEIGHT PER 100M (KG) | WLL (N) | BREAKING LOAD (N) | FORM |
| 2MM | 22 | 8 | 6 | 500 | 1250 | C |
| 2.5MM | 24 | 10 | 10 | 750 | 2000 | C |
| 3MM | 26 | 12 | 15 | 1120 | 2800 | C |
| 4MM | 32 | 16 | 27 | 2000 | 5000 | C |
| 5MM | 35 | 20 | 43 | 3150 | 7750 | C |
| 6MM | 42 | 24 | 63 | 4500 | 11500 | C |
| 7MM | 49 | 28 | 86 | 6000 | 15000 | C |
| 8MM | 52 | 32 | 110 | 8000 | 20000 | C |
| 9MM | 59 | 36 | 141 | 10000 | 25000 | C |
| 10MM | 65 | 40 | 175 | 12500 | 31000 | C |
| 11MM | 72 | 44 | 211 | 15000 | 38000 | C |
| 12MM | 78 | 48 | 255 | 18000 | 45000 | C |
| 13MM | 82 | 52 | 295 | 21200 | 53000 | C |
