DIN5685A Short Link Chain Stainless Steel.
Stainless Steel Din5685A Short Link Chain–Design and dimensions according to Din5685A. It is used for a huge variety of tasks.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this link chain is perfect for sewing weight covers in deck fittings and marine applications.
This type link chain should not be used for heavy duty carrying loads, the static suspension of loads, and any critical lifting applications.
Various sizes available from 2mm to 13mm.
| Technical Note | Conform to DIN 5685A |
| Material | Stainless Steel AISI 316 / AISI 304 |
| Processing | Welded |
| Surface Finished | Highly Polishing |
| Size | 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm |
| Tips | Rust/corrosion resistant performance. |

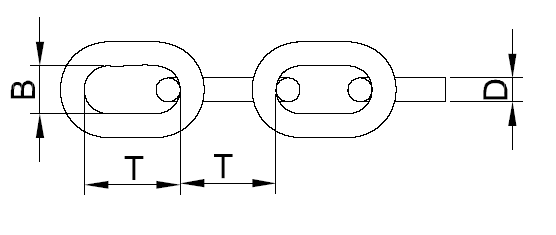

| SIZE | INSIDE LENGTH (mm) | OUTSIDE WIDTH (mm) | WEIGHT PER 100M (KG) | WLL (N) | BREAKING LOAD (N) | FORM |
| 2mm | 12 | 8 | 7 | 500 | 1250 | A |
| 2.5mm | 14 | 10 | 11 | 750 | 2000 | A |
| 3mm | 16 | 12 | 16.5 | 1120 | 2800 | A |
| 4mm | 19 | 16 | 30 | 2000 | 5000 | A |
| 5mm | 21 | 20 | 50 | 3150 | 7750 | A |
| 6mm | 24 | 24 | 73 | 4500 | 11500 | A |
| 7mm | 28 | 28 | 100 | 6000 | 15000 | A |
| 8mm | 32 | 32 | 130 | 8000 | 20000 | A |
| 9mm | 36 | 36 | 165 | 10000 | 25000 | A |
| 10mm | 40 | 40 | 205 | 12500 | 31000 | A |
| 11mm | 44 | 44 | 250 | 15000 | 38000 | A |
| 12mm | 48 | 48 | 290 | 18000 | 45000 | A |
| 13mm | 52 | 52 | 345 | 21200 | 53000 | A |
