Stainless Steel Lifting Chain.
Stainless Steel Lifting Chain is specifically designed to suit the needs of the conveyors and lifting machines.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
It is ideal for lifting in the fields such as water treatment plants, waste management and food processing.
It is specially formulated for use in overhead lifting.
| Item | Lifting Chain |
| Material | Stainless Steel AISI 316 / AISI 304 |
| Processing | Welded |
| Surface Finished | Highly Polishing / Electric Galvanized |
| Size | 1/2″, 3/8″, 5/16″, 9/32″, 3/16″ |

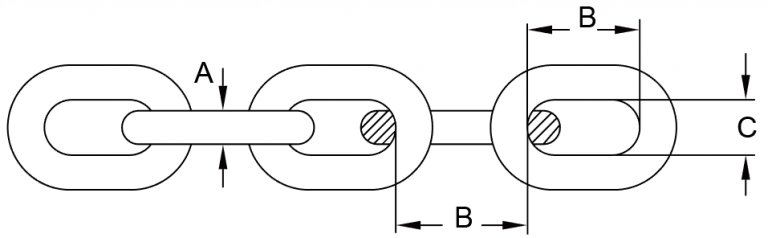

| SIZE (IN) | A (IN) | B (IN) | C (IN) | WLL (LBS) | BL (LBS) | WT (KG) |
| 3/16″ | 0.19″ | 0.58″ | 0.25″ | 1,100 | 4,400 | 0.36 |
| 9/32″ | 0.28″ | 0.85″ | 0.38″ | 2,200 | 8,800 | 0.97 |
| 5/16″ | 0.32″ | 0.95″ | 0.45″ | 2,700 | 10,800 | 0.98 |
| 3/8″ | 0.39″ | 1.18″ | 0.55″ | 4,400 | 17,600 | 1.41 |
| 1/2″ | 0.51″ | 1.55″ | 0.75″ | 7,300 | 29,200 | 2.6 |
