Stainless Steel Wire Rope Thimble Light Duty G-411.
Stainless Steel Thimbles are ideal for marine and industrial rigging and wire rope applications.
Stainless Steel Wire Rope Thimble Light Duty G-411 can be installed inside the wire rope loop to protect the cable from pinching and abrading.
Easy, quick and convenient to install. Loop the cable around the outer groove and secure with a ferrule or wire rope clip.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
Wire Rope Thimble G-411 is one of the wire rope thimble needed for a high moisture or high corrosive environment, such as marine rigging.
| Material | Stainless Steel AISI 316 / AISI 304 |
| Processing | Machining / Stamping |
| Surface Finished | Highly Polished |
| Size-Wire | 1/16” , 3/32” , 1/8” , 5/32” , 3/16” , 1/4” , 5/16” , 3/8” , 1/2” , 5/8” , 3/4” , 7/8” , 1” , 1-1/4” , 1-3/8” |
| Origin | China |

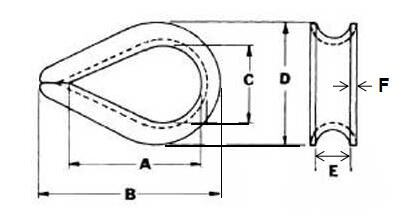

| Size | E±1~2mm | C±1~2mm | D±1~3mm | A±1~2mm | B±1~2mm | F | Weight | |
| in | mm | mm | g | |||||
| 1/16″ | 2 | 4.6 | 14.7 | 19.2 | 29 | 35.3 | 0.8 | 4.9 |
| 3/32″ | 2.5 | 5.7 | 13.5 | 18.7 | 27.3 | 34.4 | 0.8 | 5 |
| 1/8″ | 3 | 6.5 | 17.5 | 25.5 | 37 | 46 | 1.2 | 11 |
| 5/32″ | 4 | 7 | 17.5 | 25.6 | 37 | 46 | 1.2 | 12 |
| 3/16″ | 5 | 7.5 | 17.8 | 26 | 37.5 | 46.5 | 1.2 | 12 |
| 1/4″ | 6 | 8 | 17.5 | 25.3 | 39 | 46.5 | 1.2 | 12.6 |
| 5/16″ | 8 | 9.6 | 20.5 | 30.9 | 39.7 | 51.9 | 1.2 | 18 |
| 3/8″ | 10 | 11 | 24.6 | 35 | 48 | 59 | 1.5 | 31 |
| 1/2″ | 12 | 13.6 | 28.3 | 42.5 | 53.7 | 69.5 | 2 | 54 |
| 5/8″ | 16 | 20 | 35 | 57 | 58.5 | 81 | 3 | 142 |
| 3/4″ | 20 | 22 | 42.3 | 64.8 | 69.8 | 91.3 | 4 | 248 |
| 7/8″ | 22 | 26 | 49 | 77 | 94 | 123 | 4 | 370 |
| 1″ | 25 | 30 | 67.6 | 95.5 | 117 | 146 | 4 | 456 |
| 1-1/4″ | 32 | 66 | 75 | 113 | 130 | 164 | 5 | 792 |
| 1-3/8″ | 36 | – | 90 | – | – | – | 6 | 1668 |
