Stainless Steel Wire Rope Thimble Heavy Duty G414.
It is to underline and support the eyes made by looping the exteriors of wire rope.
Thimbles are placed on the inside of the loop to retain the shape and protect the wire rope from damage.
Stainless Steel Wire Rope Thimble Heavy Duty G414 is the rope thimble needed for a high moisture or corrosive environments, such as marine rigging.
Because the stainless steel material AISI316 or AISI304 has excellet rust/corrosion resistant performance.
*Never use a smaller thimble because it will pinch the rope and cause broken or displaced wires.
| Material | Stainless Steel AISI 304 / AISI 316 |
| Processing | Machining / Stamping |
| Surface Finished | Highly Polishing |
| Size-Wire | 1/8” , 3/16” , 1/4” , 5/16” , 3/8” , 7/16” , 1/2” , 9/16” , 5/8” , 23/32” , 3/4” , 7/8” , 1” , 9/8”-5/4” , 5/4”-11/8” , 11/8”-3/2” |
| Origin | China |

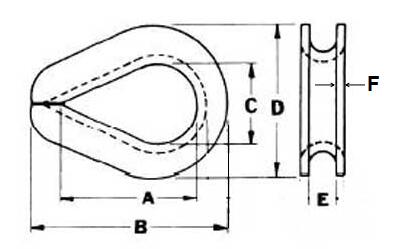

| Size | E | C | D | A | B | F | Weight | |
| in | mm | mm | g | |||||
| 1/8” | 3 | 6.2 | 15 | 23 | 29 | 38.6 | 1.2 | 8.9 |
| 3/16” | 4 | 7.4 | 18 | 26.5 | 33 | 42.6 | 1.2 | 11.8 |
| 1/4” | 6 | 9 | 22.2 | 36 | 42.5 | 56 | 1.5 | 28 |
| 5/16” | 8 | 11 | 27 | 44.8 | 48 | 63.6 | 2 | 54 |
| 3/8” | 10 | 13 | 28.5 | 51.6 | 50 | 72 | 3 | 118 |
| 7/16” | 11 | 14 | 32 | 54.5 | 57 | 78.7 | 3 | 140 |
| 1/2” | 12 | 16 | 38 | 65 | 70.5 | 95 | 4 | 242 |
| 9/16” | 14 | 18 | 42 | 70 | 76 | 104 | 4 | 274 |
| 5/8” | 16 | 21 | 47 | 77 | 80 | 106 | 4 | 310 |
| 23/32” | 18 | 21.2 | 48.5 | 88 | 86.3 | 115 | 5 | 507 |
| 3/4” | 20 | 23.6 | 50 | 94 | 86 | 125 | 5 | 607 |
| 7/8” | 22 | 28 | 58 | 104 | 95.5 | 137 | 6 | 923 |
| 1” | 25 | – | 63.5 | – | – | – | 6 | 1221 |
| 9/8”-5/4” | 28-31 | 39 | 76 | 142 | 116 | 280 | 6 | 1714 |
| 5/4”-11/8” | 31-35 | – | 89 | – | 165 | – | 10 | 4005 |
| 11/8”-3/2” | 35-38 | – | 89 | – | – | – | 10 | 4005 |
