Tubular Thimble Cast with Gusset Stainless Steel.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
This type thimble can offer long time durability and remain good performance under load.
Commonly speaking, tube thimble is stronger than standard thimble. Its gusset can protect the eyes from being crushed under load.
Sizes available in standard sizes as well as customized sizes.
| Material | Stainless steel AISI316 / AISI304 |
| Processing | Cast |
| Surface Finished | Highly polishing |
| Size-Wire | 10mm, 12mm, 14mm, 15mm, 18mm |

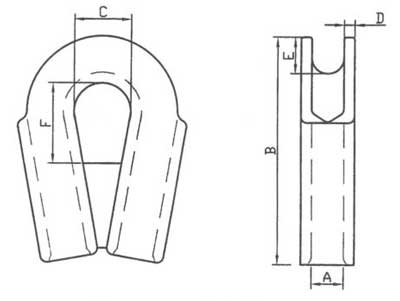

| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | weight (kg) | For wire max. (mm) |
| 11 | 75 | 20 | 1.6 | 5.4 | 33.7 | 0.5 | 8 |
| 12.5 | 83 | 22 | 1.8 | 6.1 | 33 | 0.91 | 10 |
| 13.95 | 91 | 25 | 2.1 | 6.7 | 38 | 1.05 | 12 |
| 15.6 | 93 | 25 | 2.2 | 8.8 | 40 | 1.48 | 12 |
| 18.3 | 98 | 25 | 2 | 8.6 | 39 | 1.5 | 14 |
