Stainless Steel Wire Rope Thimble Italian Type.
Stainless Steel Thimbles are ideal for marine and industrial rigging and wire rope applications.
Stainless Steel Wire Rope Thimble Italian Type can be installed inside the wire rope loop to protect the cable from pinching and abrading on the inside of the loop.
Easy, quick and convenient to install. Loop the cable around the outer groove and secure with a ferrule or wire rope clip.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
Stainless Steel Wire Rope Thimble Italian Type is one of the wire rope thimble needed for a high moisture or high corrosive environment, such as marine rigging.
Sizes available from 2mm to 26mm.
| Material | Stainless Steel AISI 316 / AISI 304 |
| Processing | Machining / Stamping |
| Surface Finished | Highly Polishing |
| Size-Wire | 2mm , 2.5mm , 3mm , 4mm , 5mm , 6mm , 8mm , 10mm , 12mm , 14mm , 16mm , 18mm , 20mm , 22mm , 24mm , 26mm |
| Origin | China |

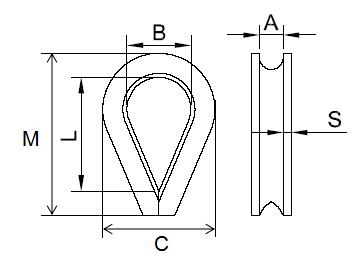

| Size | A (mm) | B (mm) | C (mm) | L (mm) | M (mm) | S (mm) | Weight (g) |
| 2mm | 2.1 | 7 | 10 | 11 | 15 | 0.7 | 1 |
| 3mm | 2.9 | 10 | 14 | 15 | 20 | 1 | 2.3 |
| 4mm | 3.5 | 11 | 16 | 17 | 24 | 1 | 3.3 |
| 5mm | 4.5 | 13 | 20 | 21 | 25 | 1 | 5 |
| 6mm | 5.2 | 16 | 23 | 26 | 29 | 1.2 | 8.5 |
| 7mm | 6.3 | 18 | 25 | 29 | 38 | 1.2 | 10.6 |
| 8mm | 8.8 | 20 | 30 | 32 | 44 | 1.5 | 14 |
| 10mm | 11 | 26 | 39 | 42 | 56 | 2 | 38 |
| 12mm | 13 | 28 | 42 | 43 | 61 | 2 | 47.5 |
| 14mm | 15 | 34 | 51 | 58 | 75 | 2 | 71 |
| 16mm | 17 | 37 | 56 | 60 | 80 | 2.5 | 109 |
| 18mm | 20 | 42 | 63 | 66 | 87 | 2.5 | 130 |
| 20mm | 21 | 45 | 68 | 79 | 102 | 3 | 205 |
| 22mm | 24 | 50 | 77 | 90 | 117 | 3 | 252 |
| 24mm | 28 | 58 | 85 | 95 | 124 | 4 | 399 |
| 26mm | 28 | 66 | 97 | 103 | 135 | 4 | 483 |
