Stainless Steel Tube Thimble without Gusset.
Thimble is specifically placed on the inside of the loop to retain the shape and protect the wire rope from damage or abrasion.
Stainless Steel Tube Thimble has rugged construction for maximum strength.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
| Material | Stainless Steel AISI 316/ AISI 304 |
| Processing | Cast |
| Surface Finished | Highly Polishing |
| Size-Wire | 10mm, 12mm, 14mm, 15mm, 18mm, 22mm |
| Origin | China |

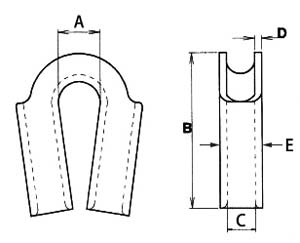

| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | For wire max. (mm) |
| 21 | 64 | 10.6 | 1.6 | 14 | 8 |
| 23 | 75 | 12.5 | 1.9 | 16 | 10 |
| 24 | 83 | 14.36 | 2.1 | 18 | 12 |
| 25 | 91 | 15.4 | 2.3 | 20 | 12 |
| 25 | 93 | 18.45 | 1.9 | 22 | 14 |
| 30 | 98 | 22.31 | 2 | 26 | 18 |
