Stainless Steel Tube Thimble with Gusset.
Also called as tubular thimble with gusset, it can protect the wire rope and keep from twisting and fraying at the ends.
Tube thimble is placed in the eye of wire rope with the sleeve pressed a distance down the rope to enable the eye to flex.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this type thimble can offer long time durability and remain good performance under load.
Tube thimble with gusset is stronger than standard thimble. Its gusset can protect the eyes from being crushed under load.
| Material | Stainless Steel AISI316 / AISI304 |
| Processing | Machining / Stamping / Welding |
| Surface Finished | Highly Polishing |
| Size-Wire | 15-12mm, 19-16mm, 24-21mm, 27-24mm, 31-28mm, 39-35mm, 48-44mm, 60-54mm |
| Tips | Supplied in open finish or with welded gusset plate |

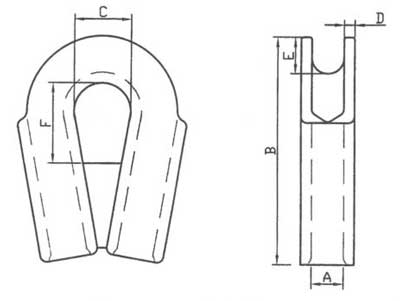

| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) | For wire max. (mm) |
| 8 | 60 | 17 | 3.0 | 7 | 30 | 0.09 | 6 |
| 10 | 70 | 20 | 3.0 | 9 | 33 | 0.13 | 8 |
| 12 | 84 | 20 | 4.0 | 7 | 34 | 0.35 | 10 |
| 15 | 91 | 27 | 5.0 | 9 | 32 | 0.41 | 12 |
| 19 | 113 | 31 | 5.0 | 11 | 46 | 0.62 | 16 |
| 24 | 136 | 46 | 5.0 | 15 | 57 | 1.11 | 21 |
| 27 | 142 | 45 | 5.0 | 15 | 62 | 1.36 | 24 |
| 31 | 163 | 48 | 7.0 | 19 | 66 | 1.92 | 28 |
| 39 | 179 | 60 | 5.5 | 20 | 83 | 1.79 | 35 |
| 48 | 220 | 74 | 5.5 | 32 | 82 | 2.90 | 44 |
| 60 | 260 | 100 | 8.5 | 38 | 90 | 5.90 | 54 |
