Stainless Steel Wire Rope Thimble European Type.
This type thimble is used to protect wire or rope from contacting with the load when hoisting.
Thimble reinforces eye to provide a longer lasting wear surface and help to support the wire rope eye.
Simply loop the cable around the outer groove and secure with a ferrule or wire rope clip.
Stainless Steel Wire Rope Thimble European Type is made of stainless steel 316 or 304 for maximum rust/corrosion resistance.
Sizes available ranging from 2mm to 26mm.
| Material | Stainless Steel AISI 316 / AISI 304 |
| Processing | Stamping/Machining |
| Surface Finished | Highly Polishing |
| Size-Wire | 2mm , 3mm , 4mm , 5mm , 6mm , 7mm , 8mm , 10mm , 12mm , 14mm , 16mm , 18mm , 20mm , 22mm , 24mm , 26mm |
| Origin | China |

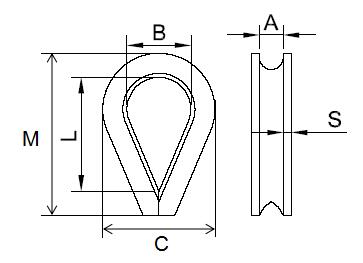

| Size | A (mm) | B (mm) | C (mm) | L (mm) | M (mm) | S (mm) | Weight (g) |
| 2mm | 2.1 | 7 | 10 | 11 | 15 | 0.7 | 1 |
| 3mm | 2.9 | 10 | 14 | 15 | 20 | 1 | 2.3 |
| 4mm | 3.5 | 11 | 16 | 17 | 24 | 1 | 3.3 |
| 5mm | 4.5 | 13 | 20 | 21 | 25 | 1 | 5 |
| 6mm | 5.2 | 16 | 23 | 26 | 29 | 1.2 | 8.5 |
| 7mm | 6.3 | 18 | 25 | 29 | 38 | 1.2 | 10.6 |
| 8mm | 8.8 | 20 | 30 | 32 | 44 | 1.5 | 14 |
| 10mm | 11 | 26 | 39 | 42 | 56 | 2 | 38 |
| 12mm | 13 | 28 | 42 | 43 | 61 | 2 | 47.5 |
| 14mm | 15 | 34 | 51 | 58 | 75 | 2 | 71 |
| 16mm | 17 | 37 | 56 | 60 | 80 | 2.5 | 109 |
| 18mm | 20 | 42 | 63 | 66 | 87 | 2.5 | 130 |
| 20mm | 21 | 45 | 68 | 79 | 102 | 3 | 205 |
| 22mm | 24 | 50 | 77 | 90 | 117 | 3 | 252 |
| 24mm | 28 | 58 | 85 | 95 | 124 | 4 | 399 |
| 26mm | 28 | 66 | 97 | 103 | 135 | 4 | 483 |
