Regular Swivel G-402 Stainless Steel.
This swivel G-402 is made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
G-402 swivel has the advantage of light weight, small volume and high strength.
This regular swivel stainless steel is used to relieve stress caused by twisting and knotting while being pulled tight.
This chain swivel is quite popular in the industrial and marine industry.
| Technical Notes | Conform to US Fed. Spec. |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Cast |
| Surface Finished | Highly Polishing |
| Size | 6mm , 8mm , 10mm , 12mm , 16mm , 20mm , 22mm , 25mm , 32mm , 38mm |

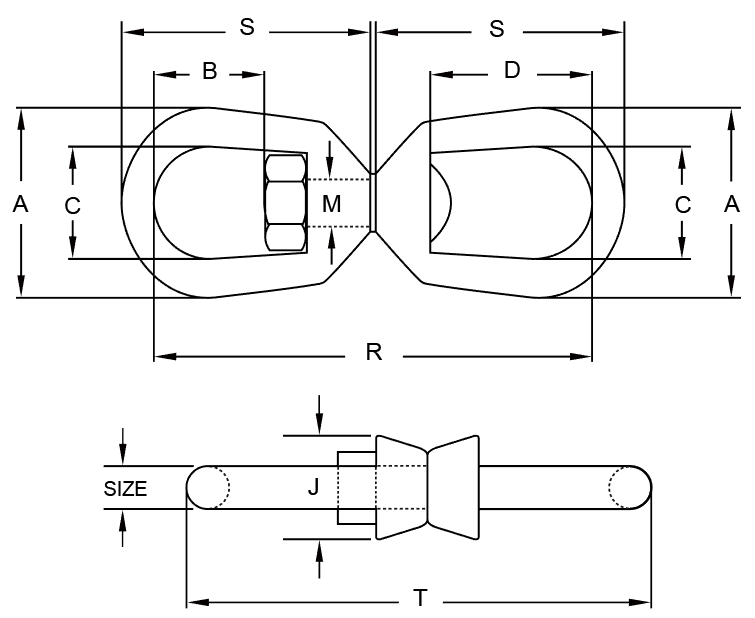

| A (inch) | B (inch) | C (inch) | D (inch) | J (inch) | M (inch) | R (inch) | S (inch) | T (inch) | WLL (lbs) |
| 1.25 | 0.69 | 0.75 | 1.06 | 0.69 | 0.31 | 2.94 | 1.69 | 3.44 | 850 |
| 1.63 | 0.81 | 1 | 1.25 | 0.81 | 0.38 | 3.56 | 2.06 | 4.19 | 1250 |
| 2 | 0.94 | 1.25 | 1.5 | 1 | 0.5 | 4.31 | 2.5 | 5.06 | 2250 |
| 2.5 | 1.31 | 1.5 | 2 | 1.31 | 0.63 | 5.44 | 3.19 | 6.44 | 3600 |
| 3 | 1.56 | 1.75 | 2.38 | 1.5 | 0.75 | 6.56 | 3.88 | 7.81 | 5200 |
| 3.5 | 1.75 | 2 | 2.63 | 1.88 | 0.88 | 7.19 | 4.31 | 8.69 | 7200 |
| 4 | 2.06 | 2.25 | 3.06 | 2.13 | 1 | 8.38 | 5 | 10.13 | 10000 |
| 4.5 | 2.31 | 2.5 | 3.5 | 2.38 | 1.13 | 9.63 | 5.75 | 11.63 | 12500 |
| 5.63 | 2.69 | 3.13 | 3.69 | 3 | 1.38 | 11.13 | 6.75 | 13.36 | 18000 |
| 7 | 4.19 | 4 | 4.19 | 4 | 2.25 | 17.13 | 10 | 20.13 | 45200 |
