Chain Swivel G-403 Jaw Eye Swivel Stainless Steel.
This Chain Swivel G-403 one end is jaw and the other end is eye to meet different need.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
G-403 chain swivel used for connecting object such as chain or wire rope.
It is convenient for the rope or chain to rotate without knotting or twisting.
Sizes available from 6mm to 38mm.
| Technical Notes | Conform to US Fed. Spe. |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Cast |
| Surface Finished | Highly Polishing |
| Size | 6mm , 8mm , 10mm , 12mm , 16mm , 20mm , 22mm , 25mm , 32mm , 38mm |

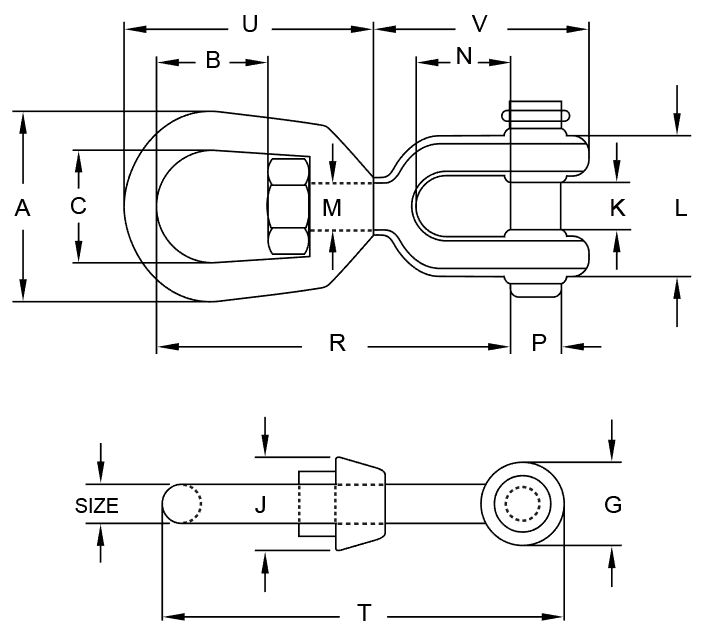

| A (inch) | B (inch) | C (inch) | G (inch) | J (inch) | K (inch) | L (inch) | M (inch) | N (inch) | P (inch) | R (inch) | T (inch) | U (inch) | V (inch) | WLL (lbs) |
| 1.25 | 0.69 | 0.75 | 0.69 | 0.69 | 0.47 | 0.03 | 0.31 | 0.88 | 0.25 | 2.63 | 3.38 | 1.69 | 1.69 | 850 |
| 1.63 | 0.81 | 1 | 0.81 | 0.81 | 0.5 | 1.13 | 0.38 | 0.88 | 0.31 | 2.94 | 3.88 | 2.06 | 1.81 | 1250 |
| 2 | 0.94 | 1.25 | 1 | 1 | 0.63 | 1.41 | 0.5 | 1.06 | 0.38 | 3.63 | 4.75 | 2.5 | 2.25 | 2250 |
| 2.5 | 1.31 | 1.5 | 1.31 | 1.31 | 0.75 | 1.75 | 0.63 | 1.31 | 0.5 | 4.5 | 6.06 | 3.19 | 2.88 | 3600 |
| 3 | 1.56 | 1.75 | 1.63 | 1.5 | 0.94 | 2.06 | 0.75 | 1.5 | 0.63 | 5.31 | 7.31 | 3.88 | 3.44 | 5200 |
| 3.5 | 1.75 | 2 | 1.88 | 1.88 | 1.13 | 1.53 | 0.88 | 1.75 | 0.75 | 6.06 | 8.31 | 4.31 | 4 | 7200 |
| 4 | 2.06 | 2.25 | 2.13 | 2.13 | 1.19 | 2.75 | 1 | 2.06 | 0.88 | 7 | 9.53 | 5 | 4.53 | 10000 |
| 4.5 | 2.31 | 2.5 | 2.63 | 2.38 | 1.75 | 3.72 | 1.13 | 2.81 | 1.13 | 8.56 | 11.69 | 5.75 | 5.94 | 12500 |
| 5.69 | 2.69 | 3.13 | 3.31 | 3 | 2.06 | 4.31 | 1.38 | 2.81 | 1.38 | 9.44 | 13.13 | 6.75 | 6.38 | 18000 |
| 7 | 4.19 | 4 | 5.63 | 4 | 2.88 | 6 | 2.25 | 4.44 | 2.25 | 14.74 | 20.84 | 10 | 10.84 | 45200 |
