Stainless Steel G-401 Chain Swivel.
Stainless steel chain swivel G-401 is made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
G401 chain swivel has the advantage of small volume, light weight and high strength.
This chain swivel is quite popular in the industrial and marine industry.
Size ranges from 6mm to 20mm.
| Technical Notes | Conform to US Fed. Spec. |
| Material | Stainless Steel AISI 304 or AISI 316 |
| Processing | Cast |
| Surface Finished | Highly Polishing |
| Size | 6mm , 8mm , 10mm , 12mm , 16mm , 20mm |
| Tips | Easy and convenient to use. |

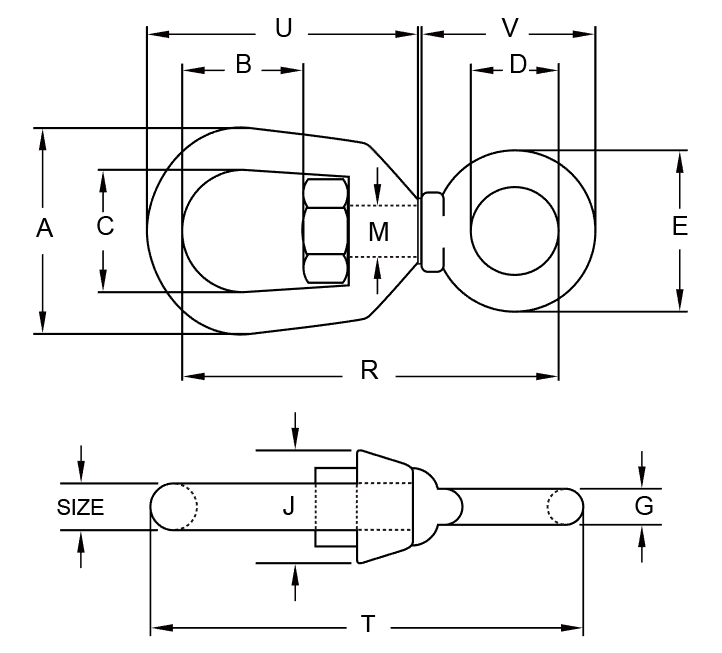

| A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | G (inch) | J (inch) | M (inch) | R (inch) | T (inch) | U (inch) | V (inch) | WLL (lbs) |
| 1.25 | 0.69 | 0.75 | 0.62 | 1.12 | 0.25 | 0.69 | 0.31 | 2.25 | 2.75 | 1.69 | 1.25 | 850 |
| 1.63 | 0.81 | 1 | 0.75 | 1.38 | 0.31 | 0.81 | 0.38 | 2.72 | 3.34 | 2.06 | 1.47 | 1250 |
| 2 | 0.94 | 1.25 | 1 | 1.75 | 0.38 | 1 | 0.5 | 3.44 | 4.19 | 2.5 | 1.88 | 2500 |
| 2.5 | 1.31 | 1.5 | 1.25 | 2.25 | 0.5 | 1.31 | 0.63 | 4.25 | 5.25 | 3.19 | 2.44 | 3600 |
| 3 | 1.56 | 1.75 | 1.5 | 2.75 | 0.62 | 1.5 | 0.75 | 5.13 | 6.31 | 3.88 | 2.94 | 5200 |
| 3.5 | 1.75 | 2 | 1.75 | 3.25 | 0.75 | 1.88 | 0.88 | 5.78 | 7.22 | 4.94 | 3.46 | 7200 |
