D-Ring Thimble Cast Two Eyes Stainless Steel

Date:2023-12-01 Count:17

Description

D-Ring Thimble Cast Two Eyes Stainless Steel.

It also called as Ezi Hold Dee Ring, made of stainless steel 316 or 304 with superb rust/corrosion resistant performance..

The Dee ring is sewn to create a connection point between the sail and the anchor point.

The D-Ring Thimble has a channel at the edge of the Dee which allows a steel wire to run through it.

The eyes at the top of the Dee helps keep the wire in place.

It is used for seatbelt webbing, marine and shade sail applications.




Technical & Feature

MaterialStainless Steel AISI 316 or AISI 304
ProcessingCast
Surface FinishedHighly Polishing
Size5mm , 6mm , 8mm

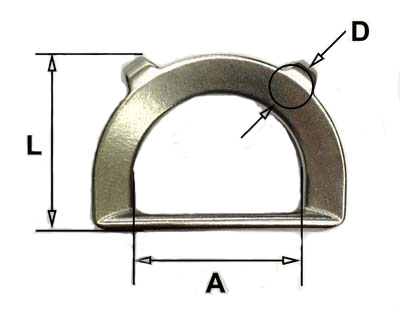

Specification- D-Ring Thimble Cast Two Eyes Stainless Steel


SizeALDWeight (kg)
Takes up to 5mm wire rope51mm55mm5.5mm0.06
Takes up to 6mm wire rope52mm62mm8.5mm0.1
Takes up to 8mm wire rope5mm68mm10.5mm0.17
