Stainless Steel Pear Shape Master Link.
This type master link, made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, is an important component of lifting & chain slings.
It is welded, polished and well tested.
Stainless Steel Pear Shape Master Link is widely used for rigging & lifting applications.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Safety Factor | 5:1 |
| Processing | Welded |
| Surface Finished | Highly Polishing |
| WLL | 0.8T , 1T , 1.8T , 3T , 4.1T , 5.1T , 7.2T |

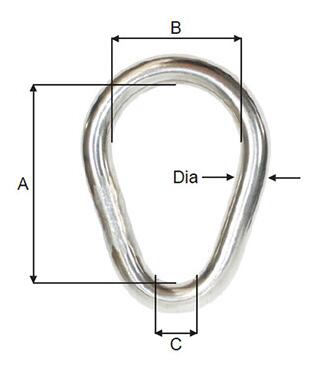

| Dia. (mm) | WLL 5:1 (ton) | A (mm) | B (mm) | C (mm) | Weight (kg) |
| 12 | 1 | 70 | 35 | 15 | 0.22 |
| 12 | 0.8 | 125 | 65 | 24 | 0.33 |
| 16 | 1.8 | 110 | 60 | 28 | 0.5 |
| 19 | 3 | 120 | 70 | 36 | 0.8 |
| 22 | 4.1 | 130 | 85 | 45 | 1.4 |
| 25 | 5.1 | 160 | 100 | 45 | 2.2 |
| 30 | 7.2 | 160 | 100 | 45 | 3 |
