Stainless Steel Drop Forged Hammerlock Chain Connector US Type。
Also called as hammerlock link, it is made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
This type hammerlock link provides easy and fast attachment/detachment without the need of special tools.
Hammerlock chain connector is load rate and it is used for high strength operation.
Drop forged stainless steel chain connector is designed for attaching hook, master link, connectors and others.
Widely used in the field of lifting, rigging, marine industry.
Sizes available from 1/4" to 1-1/4".
| Technical Notes | Conform to US Fed. Spec. |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Drop Forged |
| Surface Finished | Polishing |
| Size | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1-1/4″ |

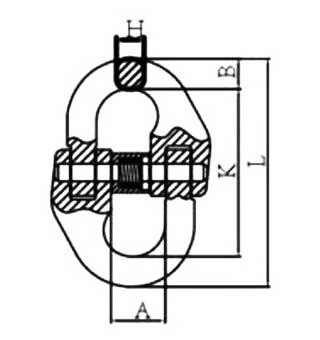

| SIZE(in) | WEIGHT (lbs) | W.L.L. (lbs) | BREAKING LOAD (lbs) | A±1.5 | L±2.5 | K±2 | W±l | H±1 | C±0.2 | D±0.3 |
| 1/4" | 0.286 | 3500 | 14000 | 16.5 | 67 | 51 | 8 | 13 | 4 | 4 |
| 5/16" | 0.32 | 4500 | 18000 | 17 | 78.5 | 58.5 | 10 | 14.5 | 6 | 6.6 |
| 3/8" | 0.73 | 7100 | 28400 | 22 | 87.6 | 63.6 | 12 | 17 | 6.2 | 8.1 |
| 1/2" | 1.67 | 12000 | 48000 | 28.5 | 115.5 | 85.5 | 15 | 21.6 | 7.8 | 7.8 |
| 5/8" | 2.86 | 18100 | 72400 | 33 | 143 | 106 | 18.5 | 26 | 9.5 | 10 |
| 3/4" | 5 | 28300 | 113200 | 41 | 162 | 116 | 23 | 32 | 12 | 13 |
| 7/8" | 7.5 | 34200 | 136800 | 50.5 | 188.5 | 136.5 | 26 | 38 | 13 | 15.5 |
| 1" | 11.03 | 47700 | 190800 | 57 | 214.5 | 152.5 | 31 | 44 | 15 | 16.5 |
| 1-1/4" | 20.38 | 72300 | 289200 | 65 | 265 | 188.7 | 38 | 54 | 20 | 20 |
