D-Ring Thimble Cast Stainless Steel.
It also called as Ezi Hold Dee Ring, made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
The Dee ring is sewn to create a connection point between the sail and the anchor point.
The D-Ring Thimble has a channel at the edge of the Dee which allows a steel wire to run through it.
The eye at the top of the Dee helps keep the wire in place.
It is used for seatbelt webbing, marine and shade sail applications.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Cast |
| Surface Finished | Highly Polishing |
| Size | 5mm , 6mm , 8mm |

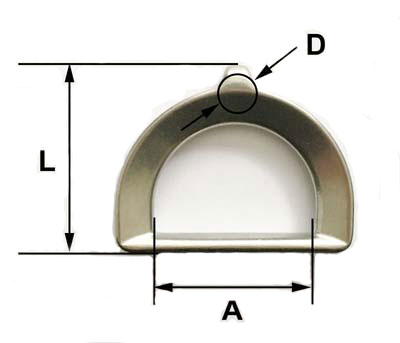

| SIZE | A | L | D | WEIGHT (kg) |
| takes up to 5mm wire rope | 51mm | 55mm | 5.5mm | 0.06 |
| takes up to 6mm wire rope | 52mm | 62mm | 8.5mm | 0.1 |
| takes up to 8mm wire rope | 5mm | 68mm | 10.5mm | 0.17 |
