Stainless Steel Quick Link.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this type quick link has a screw nut to fasten tightly.
It is quick and easy to attach/detach for long and short link chains.
Ideal hardware for chain connectiong, light hanging, light duty lifting, marine, security, decorative and many more applications.
Sizes available from 3.5mm to 16mm.
*Not suitable for overhead lifting or hoisting.
| Material | Stainless Steel AISI 316or AISI 304 |
| Processing | Stamping |
| Surface Finished | Highly Polished |
| Size | 3.5mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 14mm, 16mm |
| Tips | Do not exceed the working load limit; Do not use for overhead lifting or hoisting |
| Origin | China |

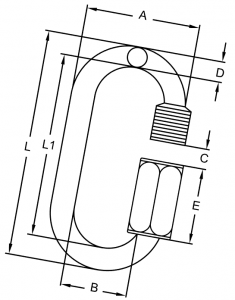

| Size | A | B | C | D | L | L1 | E | W.L.L | N.W. |
| mm | mm | mm | mm | mm | mm | mm | mm | lbs | kg/100pcs |
| 3.5 | 17 | 10 | 5 | 3.5 | 36 | 29 | 11 | 200 | 0.8 |
| 4 | 19.5 | 11.5 | 5.5 | 4 | 39.5 | 31.5 | 12.5 | 440 | 1.2 |
| 5 | 23 | 13 | 6.5 | 5 | 48.5 | 35.5 | 16 | 660 | 2.1 |
| 6 | 26.5 | 14.5 | 7.5 | 6 | 57 | 45 | 19 | 880 | 3.5 |
| 7 | 30 | 16 | 8.5 | 7 | 66 | 52 | 21.5 | 1300 | 5.45 |
| 8 | 33.5 | 17.5 | 10.5 | 8 | 74 | 58 | 24 | 1760 | 7.5 |
| 9 | 37 | 19 | 11 | 9 | 80 | 62 | 26 | 2200 | 10.5 |
| 10 | 40.5 | 20.5 | 12 | 10 | 89 | 69 | 29 | 2640 | 13.5 |
| 12 | 47.5 | 23.5 | 15 | 12 | 104.5 | 80.5 | 33 | 3300 | 22.8 |
| 14 | 54.5 | 26.5 | 17 | 14 | 121 | 93 | 38.5 | 6100 | 35 |
| 16 | 61.5 | 29.5 | 19 | 16 | 140 | 108 | 45 | 8000 | 50 |
