Stainless Steel Pear Shape Quick Link.
Stainless Steel Pear Shape Quick Link has a single opening that closes with a threaded barrel screw and can apply to semi-permanent connection.
The threaded barrel screw opens to accept rings and loops and then screws closed to retain them.
It can be tightened with a wrench for added security against vibration.
As Stainless Steel Pear Shape Quick Link is ideal for use outdoors or in a marine environment, it is popular with sailors, climbers, divers and gliders.
*Not suitable for overhead lifting or suspension.
| Material | Stainless Steel AISI 304 or AISI 316 |
| Processing | Stamping / Machining |
| Surface Finished | Highly Polishing / Electric Galvanized |
| Tips | Not for overhead lifting |
| Origin | China |

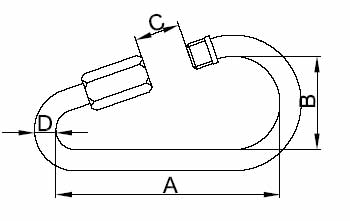

Specification- Stainless Steel Pear Shape Quick Link
| D (mm) | A (mm) | B (mm) | C (mm) | WLL (lbs) |
| 3.5 | 45 | 20 | 9.5 | 120 |
| 4 | 52 | 24 | 11 | 350 |
| 5 | 60 | 27 | 12 | 450 |
| 6 | 69 | 31 | 14 | 600 |
| 8 | 84 | 35 | 17 | 1100 |
| 9 | 90 | 39 | 19 | 1300 |
| 10 | 98 | 44 | 20 | 1500 |
| 12 | 117 | 52 | 23 | 1650 |
