Stainless Steel Delta Quick Link.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this type quick link has a screw nut to fasten tightly.
It is quick and easy to attach/detach objects.
This delta quick link is ideal for marine and industrial rigging and connecting applications.
*Not suitable for overhead lifting or suspension.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Surface Finished | Highly Polishing |
| Size | 3.5mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
| Origin | China |

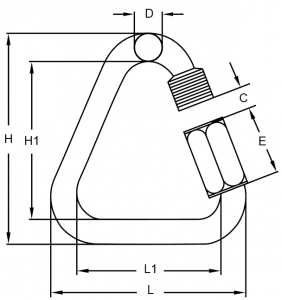

| Size | H (mm) | H1 (mm) | C (mm) | D (mm) | L (mm) | L1 (mm) | E (mm) | W.L.L (lbs) | WT. (kg/100pcs) |
| 3.5mm | 36 | 29 | 5 | 3.5 | 31.5 | 11 | 24 | 200 | 0.92 |
| 4mm | 40 | 32 | 5.5 | 4 | 35.5 | 12.5 | 27.5 | 250 | 1.35 |
| 5mm | 48 | 38 | 6.5 | 5 | 40 | 16 | 30 | 330 | 2.3 |
| 6mm | 56 | 44 | 7.5 | 6 | 47 | 19 | 35 | 6550 | 4.02 |
| 8mm | 73 | 57 | 10.5 | 8 | 56 | 24 | 40 | 1210 | 8.97 |
| 10mm | 87 | 67 | 12 | 10 | 66 | 29 | 46 | 1320 | 15.52 |
| 12mm | 104 | 80 | 15 | 12 | 75 | 33 | 51 | 2425 | 28.75 |
