Stainless Steel Long Quick Link.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this type quick link has a screw nut to fasten tightly.
It is quick and early to attach/detach for long, medium or short link chains.
High Quality precision screw provides tight and secure connection.
Threaded closure and can fasten tightly with fingers or a simple tool if needed.
Long Quick Link is widely used for chain connectiong, light hanging, light duty lifting, marine, security, decorative and many more applications.
*Not suitable for overhead lifting or hoisting.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Stamping |
| Surface Finished | Powder Coated/Highly polishing |
| Size | 3.5mm, 4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm, 14mm |
| Tips | Do not exceed the working load limit; Do not use for overhead lifting or hoisting |
| Origin | China |

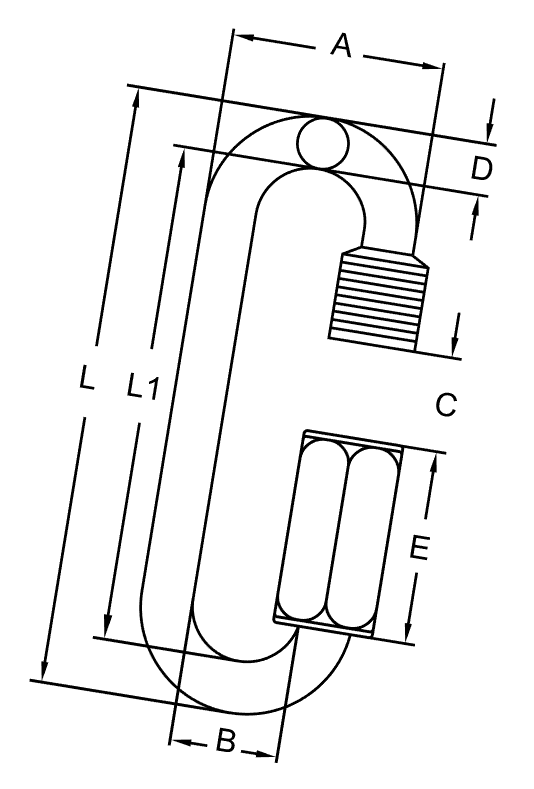

| Size | A (mm) | B (mm) | C (mm) | D (mm) | L (mm) | L1 (mm) | E (mm) | W.L.L (lbs) | N.W.(kg/100pcs) |
| 3.5mm | 17 | 10 | 5 | 3.5 | 46 | 39.5 | 16 | 180 | 0.7 |
| 4mm | 19.5 | 11.5 | 5.5 | 4 | 53 | 45 | 19 | 350 | 1.5 |
| 5mm | 23 | 13 | 6.5 | 5 | 62 | 52 | 22 | 550 | 2 |
| 6mm | 26.5 | 14.5 | 7.5 | 6 | 70.5 | 58.5 | 25 | 770 | 3.75 |
| 7mm | 30 | 16 | 8.5 | 7 | 79 | 65 | 28 | 880 | 6 |
| 8mm | 33.5 | 17.5 | 10.5 | 8 | 88 | 72 | 31.5 | 1430 | 9 |
| 10mm | 40.5 | 20.5 | 12 | 10 | 105.5 | 85.5 | 36 | 1760 | 13.55 |
| 12mm | 47.5 | 23.5 | 15 | 12 | 124 | 100 | 43 | 2755 | 25 |
| 14mm | 57 | 30 | 25 | 14 | 141.5 | 115 | 48 | 3500 | 40 |
