Stainless Steel Snap Hook with Eyelet DIN5299.
Stainless steel snap Hook with Eyelet is safer with adding a small O-ring at the small end of hook to keep the rope or chain in a small space.
It is easily access and keep all the essentials in one place. It’s quick, easy and saves time.
Stainless steel snap Hook with Eyelet is widely used as hardware in many sectors such as marine rigging, sailing, climbing etc. .
*Not suitable for overhead lifting or suspension.
| Technical Notes | Conform to DIN5299 |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Stamping / Machining |
| Surface Finished | Highly Polishing / Electric Coating |
| Size | 4mm , 5mm , 6mm , 7mm , 8mm , 9mm , 10mm , 11mm , 12mm , 13mm , 14mm |
| Tips | Not to be used for overhead lifting |
| Origin | China |

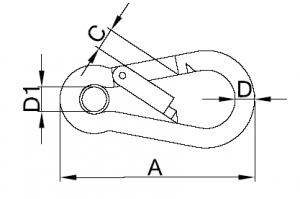

| Size (mm) | D (mm) | A (mm) | C (mm) | D1 (mm) | WLL (lbs) |
| 4×40 | 4 | 40 | 6 | 5 | 80 |
| 5×50 | 5 | 50 | 7 | 6.5 | 100 |
| 6×60 | 6 | 60 | 8 | 7.5 | 140 |
| 7×70 | 7 | 70 | 8 | 9 | 200 |
| 8×80 | 8 | 80 | 9 | 10 | 250 |
| 9×90 | 9 | 90 | 10 | 11 | 280 |
| 10×100 | 10 | 100 | 12 | 13 | 400 |
| 11×120 | 11 | 120 | 16 | 15 | 500 |
| 12×140 | 12 | 140 | 19 | 18 | 600 |
| 13×160 | 13 | 160 | 25 | 20 | 700 |
| 14×180 | 14 | 180 | 35 | 20 | 900 |
