Stainless Steel Snap Hook DIN 5299 Form C.
Also called as Stainless Steel Spring Snap Hook DIN 5299, has more strength and be safer via adding a screw and an eyelet.
Spring snap hook with screw & eyelet is normally for use in the food and beverage industry, also ideal for marine and industrial rigging applications.
It is made of stainless steel 316 or 304 which has superb rust/corrosion resistant performance.
*Not suitable for overhead lifting.
| Technical Notes | Conform to DIN5299 Form C |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Stamping / Machining |
| Surface Finished | Highly Polishing |
| Size | 4mm , 5mm , 6mm , 7mm , 8mm , 9mm , 10mm , 11mm , 12mm , 13mm , 14mm |
| Tips | Not to be used for overhead lifting |
| Origin | China |

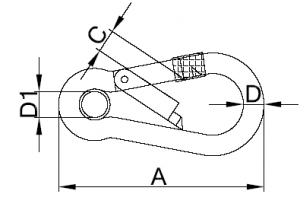

| Size (mm) | D (mm) | A (mm) | C (mm) | D1 (mm) | WLL (lbs) |
| 4×40 | 4 | 40 | 6 | 6.5 | 80 |
| 5×50 | 5 | 50 | 7 | 8 | 100 |
| 6×60 | 6 | 60 | 8 | 9 | 140 |
| 7×70 | 7 | 70 | 8 | 10.5 | 200 |
| 8×80 | 8 | 80 | 9 | 12 | 250 |
| 9×90 | 9 | 90 | 10 | 13 | 280 |
| 10×100 | 10 | 100 | 12 | 15 | 400 |
| 11×120 | 11 | 120 | 16 | 18 | 500 |
| 12×140 | 12 | 140 | 19 | 20 | 600 |
| 13×160 | 13 | 160 | 25 | 22 | 700 |
| 14×180 | 14 | 180 | 35 | 22 | 900 |
