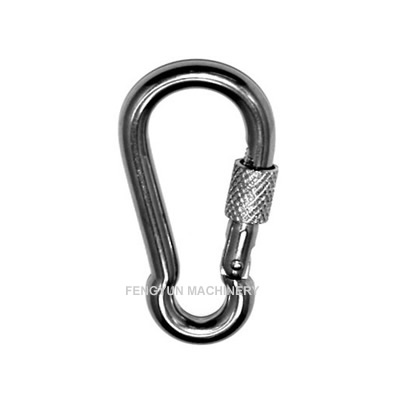

Carbine Snap Hook with Screw Nut DIN5299.
Snap Hook with Safety Screw DIN5299 is made of Stainless Steel 316 or 304, strong rust/corrosion resistance.
The carbine hook has a screw nut when closes.
Carbine Snap Hook with Screw Nut DIN5299 keeps all the essentials in one place.
Quick and easy, ideal for mechanical and industrial work where complete safety is important.
This type hook is manufactured for all external uses widely in sporting activities such as base jumping, parasailing, climbing etc..
| Technical Notes | Conform to DIN5299 |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Stamping / Machining |
| Surface Finished | Highly Polishing / Electric Galvanized |
| Size | 4mm , 5mm , 6mm , 7mm , 8mm , 9mm , 10mm , 11mm , 12mm , 13mm , 14mm |
| Tips | Not to be used for overhead lifting |

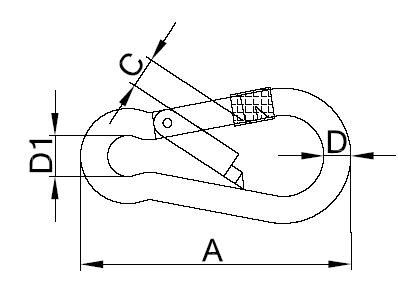

| Size (mm) | D (mm) | A (mm) | C (mm) | D1 (mm) | WLL (lbs) |
| 4×40 | 4 | 40 | 6 | 6.5 | 80 |
| 5×50 | 5 | 50 | 7 | 8 | 100 |
| 6×60 | 6 | 60 | 8 | 9 | 140 |
| 7×70 | 7 | 70 | 8 | 10.5 | 200 |
| 8×80 | 8 | 80 | 9 | 12 | 250 |
| 9×90 | 9 | 90 | 10 | 13 | 280 |
| 10×100 | 10 | 100 | 12 | 15 | 400 |
| 11×120 | 11 | 120 | 16 | 18 | 500 |
| 12×140 | 12 | 140 | 19 | 20 | 600 |
| 13×160 | 13 | 160 | 25 | 22 | 700 |
| 14×180 | 14 | 180 | 35 | 22 | 900 |
