Stainless Steel Swageless Eye Terminal.
Also called as Swageless Eye Terminal, Stainless steel Cable Marine Hardware.
It is great for use in putting together many different wire rope arrangements. Installed quickly by hand with just simple tools we normally have.
They come in both metric and imperial threads.
Stainless Steel Swageless Eye Terminal made of standard stainless Steel 316 or 304, which has excellent rust/corrosion resistant performance.
It is generally used in commercial and sailing sectors, in sculpture & art and children’s playground.
Technical & Application
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Machining |
| Surface Finished | Highly Polishing |
| Size | 3mm , 4mm , 5mm , 6mm , 8mm , 10mm , 12mm , 14mm , 16mm |
| Origin | China |

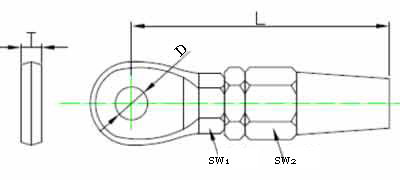

| Size | T (mm) | D (mm) | L (mm) | SW1 (mm) | SW2 (mm) | KG/100PCS |
| 3mm | 5.5 | 6.3 | 50 | 10 | 12 | 3.5 |
| 4mm | 7 | 8.8 | 58 | 12 | 14 | 6 |
| 5mm | 8 | 10.3 | 70 | 14 | 17 | 9.5 |
| 6mm | 9 | 13 | 84 | 17 | 19 | 15.5 |
| 8mm | 10 | 14.5 | 103 | 19 | 24 | 28.5 |
| 10mm | 13 | 16.2 | 116 | 24 | 27 | 44 |
| 12mm | 15 | 19.5 | 137 | 27 | 32 | 72 |
| 14mm | 18 | 22 | 160 | 30 | 36 | 104 |
| 16mm | 20 | 25 | 170 | 32 | 41 | 141 |
