Stainless Steel Swageless Toggle Terminal- Quick Attach.
Also called as Swageless cable fittings-toggle terminal.
The advantage of “Quick Attach” over conventional fittings is the arrangement of the wedges on the outside of the cable which makes assembly much easier and allows different types of wire to use with the same fitting.
This type toggle terminal is strong, safe and reliable.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, it is widely used in marine fields.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Machining |
| Surface Finished | Highly Polishing |
| Size-Wire | 3mm , 4mm , 5mm , 6mm , 8mm , 10mm , 12mm , 14mm , 16mm |
| Origin | China |

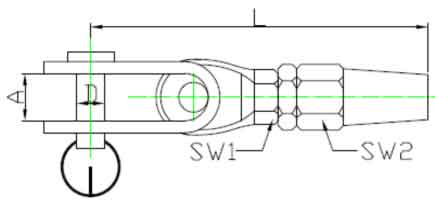

| Size | A (mm) | D (mm) | L (mm) | SW1 (mm) | SW2 (mm) | KG/100PCS |
| 3mm | 8 | 6 | 71 | 10 | 12 | 6 |
| 4mm | 10 | 8 | 90 | 12 | 14 | 9 |
| 5mm | 12 | 9 | 108 | 14 | 17 | 18 |
| 6mm | 15 | 12 | 125 | 17 | 19 | 30 |
| 8mm | 18 | 16 | 148 | 19 | 24 | 65 |
| 10mm | 20 | 19 | 176 | 24 | 27 | 80 |
| 12mm | 24 | 19 | 206 | 27 | 32 | 120 |
| 14mm | 26 | 22 | 230 | 30 | 36 | 185 |
| 16mm | 29 | 25 | 261 | 32 | 41 | 260 |
