Stainless Steel Swage Jaw Fork Terminal.
Stainless Steel Swage Jaw Fork Terminal is manufactured of stainless steel which has excellent rust/corrosion resistance.
This type terminal is used to terminate wire rope, mainly use in the marine and architectural industries.
Ideal hardware on the fence, deck, corridor, balcony or staircase.
Removable clevis pin and needs to be hydraulically swaged.
| Technical Notes | Conform to European Type |
| Processing | Welding / Stamping / Machining |
| Surface Finished | Highly Polishing |
| Size | 2mm , 2.5mm , 3mm , 3.2mm , 4mm , 5mm , 6mm , 7mm , 8mm , 10mm , 12mm , 14mm , 16mm , 19mm , 22mm , 26mm |
| Tips | Need to be Hydraulically swaged onto the steel wire rope; Removable clevis pin is kept by a split ring. |
| Origin | China |

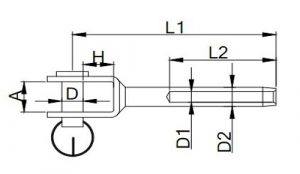

| Wire (mm) | A (mm) | D (mm) | H (mm) | D1 (mm) | D2 (mm) | L2 (mm) | L1 (mm) | KG/100PCS | B.L. (KG) |
| 2mm | 5.5 | 4 | 8 | 2.2 | 5.5 | 24 | 55 | 2.4 | 500 |
| 2.5mm | 6.5 | 5 | 10 | 2.7 | 5.5 | 24 | 55 | 2.4 | 500 |
| 3mm | 8 | 5 | 10 | 3.3 | 6.35 | 28 | 55 | 2.5 | 800 |
| 3mm | 7.5 | 6 | 10 | 3.3 | 6.35 | 32 | 65 | 3 | 1300 |
| 3.2mm | 7.5 | 5 | 9 | 3.5 | 6.35 | 38 | 65 | 2 | 800 |
| 4mm | 9 | 6 | 10 | 4.3 | 7.5 | 37 | 65 | 4 | 1300 |
| 4mm | 11 | 8 | 11 | 4.3 | 7.5 | 40 | 77 | 4.7 | 2350 |
| 5mm | 10 | 8 | 12 | 5.3 | 9 | 42 | 70 | 6.5 | 1300 |
| 5mm | 12 | 9 | 14 | 5.3 | 9 | 57 | 88 | 7.4 | 2350 |
| 6mm | 12 | 10 | 14 | 6.3 | 12.6 | 51 | 85 | 13.5 | 2350 |
| 6mm | 14 | 12 | 20 | 6.4 | 12.6 | 63 | 106 | 16 | 4700 |
| 7mm | 15 | 12 | 22 | 7.4 | 14.2 | 70 | 116 | 18 | 5100 |
| 8mm | 17 | 16 | 26 | 8.4 | 16 | 85 | 145 | 40 | 7600 |
| 10mm | 20 | 19 | 30 | 10.5 | 18 | 90 | 150 | 49 | 9800 |
| 12mm | 23 | 19 | 35 | 12.6 | 20 | 105 | 195 | 64 | 13000 |
| 14mm | 30 | 22 | 46.5 | 14.7 | 25 | 140 | 232 | 117 | 17000 |
| 16mm | 30 | 25 | 49 | 16.9 | 28 | 160 | 264 | 154 | 24000 |
| 19mm | 34 | 28 | 54 | 20 | 34.5 | 200 | 323 | 412 | 27000 |
| 22mm | 40 | 32 | 62 | 23.2 | 40.5 | 230 | 350 | 570 | 31000 |
| 26mm | 44 | 36 | 70 | 27.5 | 46 | 280 | 430 | 710 | 43000 |
