Stainless Steel Wire Rope Clip DIN 1142/EN 13411-5.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
Compared with other clip designs, the wide saddle section of the clip gives superior support to the load bearing section of the wire rope.
*Straight or in-line pull only.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Size | 5mm , 6.5mm , 8mm , 10mm , 12mm , 14mm , 16mm , 19mm , 22mm , 26mm , 30mm , 34mm , 40mm |
| Safety Factor | Proof Load is 2.5 times Working Load Limit. Ultimate Load is 5 times the Working Load Limit. |
| Processing | Cast + Machining |
| Surface Finished | Highly Polishing |
| Tips | Straight or in-line pull only |

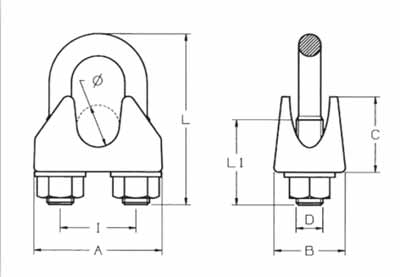

| Size | A (mm) | B (mm) | C (mm) | D (mm) | I (mm) | L (mm) | L1 (mm) | Unit Weight (kg) |
| 5mm | 25 | 13 | 13 | M 5 | 12 | 25 | 13 | 0.020 |
| 6.5mm | 30 | 16 | 14 | M 6 | 14 | 32 | 17 | 0.040 |
| 8mm | 39 | 20 | 18 | M 8 | 18 | 41 | 20 | 0.082 |
| 10mm | 40 | 20 | 21 | M 8 | 20 | 46 | 24 | 0.092 |
| 12mm | 50 | 24 | 25 | M 10 | 24 | 50 | 28 | 0.250 |
| 14mm | 59 | 28 | 30 | M 12 | 28 | 66 | 31 | 0.300 |
| 16mm | 64 | 32 | 35 | M 14 | 32 | 76 | 35 | 0.430 |
| 19mm | 68 | 32 | 40 | M 14 | 36 | 83 | 36 | 0.490 |
| 22mm | 74 | 34 | 44 | M 16 | 40 | 96 | 40 | 0.680 |
| 26mm | 84 | 38 | 51 | M 20 | 46 | 111 | 50 | 1.170 |
| 30mm | 95 | 41 | 59 | M 20 | 54 | 127 | 55 | 1.400 |
| 34mm | 105 | 45 | 67 | M 22 | 60 | 141 | 60 | 2.130 |
| 40mm | 117 | 49 | 77 | M 24 | 68 | 159 | 65 | 2.680 |
