Stainless Steel Wire Rope Clip G450 Type.
It also called as Wire Rope Clamp G450 Type or Wire Rope Grip G450 Type.
This type wire rope clip consists of a U-shaped bolt. So can fix the wire rope cable against the saddle after the two nuts are tightened.
Made of stainless steel with excellent rust/corrosion resistance, this type clip is ideal for outdoor use, for saltwater field and other corrosive environments.
Stainless Steel Wire Rope Clip G450 Type often apply to marine applications such as fishing, on boat, on yacht, on vessel deck and also ideal for food processing facility.
| Material | Stainless Steel 316 or 304 |
| Processing | Cast |
| Surface Finished | Highly Polishing |
| Size | 1/8", 3/16″, 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8″, 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-5/8", 1-3/4", 2", 2-1/4", 2-1/2", 2-3/4", 3″ |

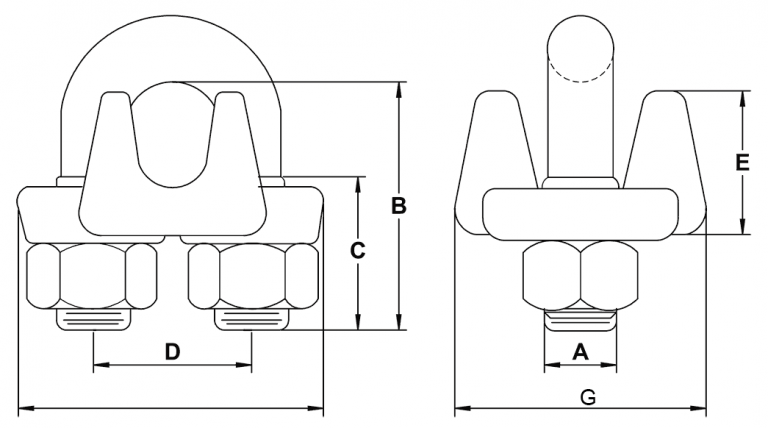

| SIZE | DIMENSION | ||||||
| A | B | C | D | E | G | H | |
| 1/8” | 3/16" | 18 | 11 | 12 | 10 | 20 | 23 |
| 3/16″ | 1/4” | 24 | 14 | 15 | 12 | 23 | 29 |
| 1/4” | 5/16” | 26 | 15 | 19 | 16 | 29 | 36 |
| 5/16” | 3/8” | 35 | 19 | 22 | 18 | 33 | 43 |
| 3/8” | 7/16” | 38 | 19 | 25 | 23 | 41 | 49 |
| 7/16” | 1/2” | 47 | 25 | 30 | 26 | 46 | 58 |
| 1/2” | 1/2” | 47 | 25 | 30 | 28 | 48 | 58 |
| 9/16” | 9/16” | 57 | 32 | 33 | 31 | 52 | 63 |
| 5/8″ | 9/16” | 60 | 32 | 33 | 34 | 52 | 63 |
| 3/4” | 5/8′ | 70 | 36 | 38 | 35 | 57 | 72 |
| 7/8” | 3/4” | 79 | 41 | 44 | 40 | 62 | 80 |
| 1″ | 3/4” | 89 | 46 | 47 | 45 | 66 | 88 |
| 1-1/8” | 3/4” | 98 | 51 | 51 | 48 | 71 | 91 |
| 1-1/4” | 7/8″ | 108 | 54 | 59 | 56 | 80 | 105 |
| 1-3/8” | 7/8″ | 118 | 59 | 60 | 59 | 80 | 106 |
| 1-1/2” | 7/8″ | 125 | 60 | 66 | 62 | 87 | 113 |
| 1-5/8” | 1″ | 135 | 60 | 70 | 68 | 92 | 121 |
| 1-3/4” | 1-1/8” | 149 | 70 | 78 | 73 | 95 | 133 |
| 2” | 1-1/4” | 165 | 76 | 84 | 86 | 113 | 148 |
| 2-1/4” | 1-1/4” | 181 | 84 | 98 | 97 | 114 | 160 |
| 2-1/2″ | 1-1/4” | 197 | 86 | 105 | 108 | 114 | 164 |
| 2-3/4″ | 1-1/4” | 211 | 89 | 111 | 127 | 127 | 171 |
| 3″ | 1-1/2″ | 233 | 98 | 121 | 133 | 175 | 192 |
