Stainless Steel Wire Rope Clip DIN741.
It also called as Wire Rope Grip Din741 with grooved deep recess to hold cable or wire rope securely.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
Stainless Steel Din741 Wire Rope Clip is widely used for demanding applications in the marine, agricultural and industrial field.
*Straight or in-line pull only.
| Technical Notes | Conform to DIN 741 |
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Cast |
| Surface Finished | Highly Polishing |
| Size | 3mm, 5mm, 6mm, 8mm, 10mm, 11mm, 13mm, 14mm, 16mm, 19mm, 22mm, 26mm, 30mm, 32mm, 34mm, 40mm |

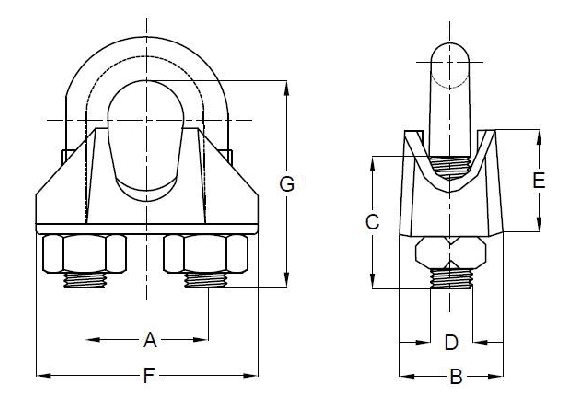

| Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| 3mm | 9 | 10 | 12 | 4 | 10 | 21 | 16 |
| 5mm | 11 | 11 | 13 | 5 | 10 | 23 | 19 |
| 6mm | 13 | 12 | 15 | 5 | 11 | 26 | 23 |
| 8mm | 16 | 14 | 19 | 6 | 15 | 30 | 28 |
| 10mm | 19 | 18 | 22 | 8 | 17 | 34 | 34 |
| 11mm | 20 | 19 | 22 | 8 | 18 | 36 | 36 |
| 13mm | 24 | 23 | 30 | 10 | 21 | 42 | 45 |
| 14mm | 25 | 23 | 30 | 1 | 22 | 44 | 47 |
| 16mm | 29 | 26 | 33 | 12 | 26 | 50 | 51 |
| 19mm | 32 | 29 | 38 | 12 | 30 | 54 | 63 |
| 22mm | 37 | 33 | 44 | 14 | 34 | 61 | 71 |
| 26mm | 41 | 35 | 45 | 14 | 37 | 65 | 81 |
| 30mm | 50 | 40 | 50 | 16 | 50 | 80 | 94 |
| 32mm | 50 | 40 | 50 | 16 | 50 | 80 | 102 |
| 34mm | 54 | 45 | 55 | 16 | 55 | 88 | 104 |
| 40mm | 60 | 48 | 60 | 16 | 60 | 95 | 124 |
