Stainless Steel Turnbuckle Eye & Eye US Type.
It also called as Turn Buckle Eye & Eye (or Eye to Eye) US Federal Specification.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this turnbuckle is a common type of rigging hardware.
Stainless Steel Turnbuckle Eye & Eye US Type offers tension by adjusting the length for supporting ropes, wire ropes, cables and chains.
The eyes are formed elongated for added strength and for easier hook-up.
With turnbuckle eyes on each end, they have the same break strength of the hook & hook turnbuckle or jaw & jaw turnbuckle.
As a type of turnbuckle, it has the fast connect/disconnect properties, optimal hardware for marine rigging, fencing & architectural industry use.
A full line of type available including Jaw & Jaw, Hook & Hook, Hook & Eye etc. in various sizes from small size turnbuckle to big size turnbuckle.
*Straight or in-line pull only.
| Technical Notes | Conform to US Fed. Spec.（ASTM F1145-92） |
| Material | Stainless steel AISI 316 / AISI 304 |
| Size | 1/4×4” , 5/16×4.5” , 3/8×6” , 1/2×6” , 1/2×9” , 1/2×12” , 5/8×6” , 5/8×9” , 5/8×12”, 3/4×6” , 3/4×9” , 3/4×12” , 7/8×6” , 7/8×12” , 1×6” , 1×12” , 1-1/4×12” |
| Processing | Cast / Forged |
| Surface Finished | Highly Polishing |
| Tips | Rust/corrosion resistant,Straight or in-line pull only. |

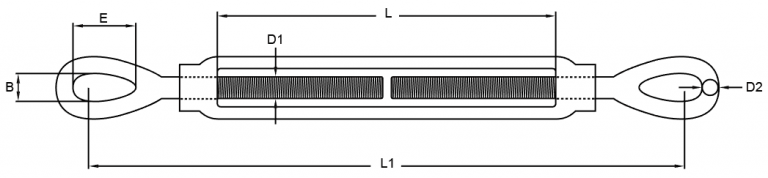

| Size (In) | L (In) | L1 (In) | B (In) | E (In) | D2 (In) |
| 1/4″ | 4 | 8 | 0.32 | 0.78 | 0.24 |
| 5/16″ | 4.5 | 8.6 | 0.43 | 0.94 | 0.3 |
| 3/8″ | 6 | 10.94 | 0.51 | 1.12 | 0.35 |
| 1/2″ | 6 | 12 | 0.71 | 1.44 | 0.45 |
| 1/2″ | 9 | 15 | 0.71 | 1.44 | 0.45 |
| 1/2″ | 12 | 18 | 0.71 | 1.44 | 0.45 |
| 5/8″ | 6 | 13.8 | 0.87 | 1.75 | 0.51 |
| 5/8″ | 9 | 16.8 | 0.87 | 1.75 | 0.51 |
| 5/8″ | 12 | 19.8 | 0.87 | 1.75 | 0.51 |
| 3/4″ | 6 | 15.38 | 0.99 | 2.09 | 0.67 |
| 3/4″ | 9 | 18.38 | 0.99 | 2.09 | 0.67 |
| 3/4″ | 12 | 21.38 | 0.99 | 2.09 | 0.67 |
| 7/8″ | 6 | 16.5 | 1.21 | 2.38 | 0.75 |
| 7/8″ | 12 | 22.5 | 1.21 | 2.38 | 0.75 |
| 1″ | 6 | 18.8 | 1.37 | 3 | 0.91 |
| 1″ | 12 | 24.8 | 1.37 | 3 | 0.91 |
| 1-1/4″ | 12 | 26.5 | 1.37 | 3.56 | 1.14 |
