Stainless Steel Hook & Hook Turnbuckle US Type.
It also called as Turn Buckle or Rigging Screw Hook & Hook US Type.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this turnbuckle is a common type of rigging hardware.
Stainless Steel Turnbuckle Hook & Hook US Type supplys tension by adjusting the length for supporting ropes, wire ropes, cables and chains .
With turnbuckle hooks on each end, they have the same break strength of the eye & eye turnbuckle or jaw & jaw turnbuckle.
As a type of turnbuckle, it has the fast connect/disconnect properties, optimal hardware for marine rigging, fencing & architectural industry use.
A full line of type available including Jaw & Jaw, Eye & Eye, Hook & Eye etc. in various sizes from small size turnbuckle to big size turnbuckle.
*Straight or in-line pull only.
| Technical Notes | Conform to US Fed. Spec. |
| Material | Stainless steel AISI 304 / AISI 316 |
| Size | 1/4×4” , 5/16×4.5” , 3/8×6” , 1/2×6” , 1/2×9” , 1/2×12” , 5/8×6” , 5/8×9” , 5/8×12” , 3/4×6” , 3/4×9” , 3/4×12” |
| Processing | Cast / Forged |
| Surface Finished | Highly Polishing |
| Tips | Rust/corrosion resistant,Straight or in-line pull only. |

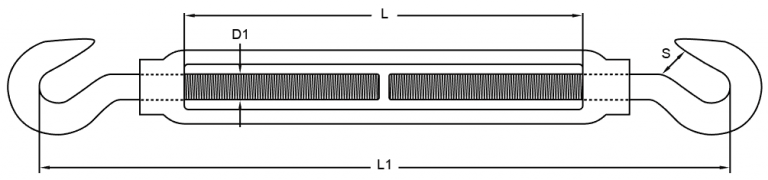

| Size(In) | L(In) | L1(In) | S(In) |
| 1/4″ | 4 | 7.43 | 0.37 |
| 5/16″ | 4.5 | 8.24 | 0.4 |
| 3/8″ | 6 | 10.63 | 0.48 |
| 1/2″ | 6 | 11.55 | 0.55 |
| 1/2″ | 9 | 14.55 | 0.55 |
| 1/2″ | 12 | 17.55 | 0.55 |
| 5/8″ | 6 | 12.77 | 0.74 |
| 5/8″ | 9 | 15.77 | 0.74 |
| 5/8″ | 12 | 18.77 | 0.74 |
| 3/4″ | 6 | 14.19 | 0.9 |
| 3/4″ | 9 | 17.19 | 0.9 |
| 3/4″ | 12 | 20.19 | 0.9 |
