Stainless Steel Turnbuckle Jaw & Jaw US Type.
Also known as rigging screw jaw and jaw US Fed. Spec.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this turnbuckle is a common type of rigging hardware.
Stainless Steel Turnbuckle Jaw & Jaw US Type offers tension by adjusting the length for supporting ropes, wire ropes, cables and chains .
With turnbuckle jaws on each end, they have the same break strength of the eye & eye turnbuckle or hook & hook turnbuckle.
As a type of turnbuckle, it has the fast connect/disconnect properties, optimal hardware for marine rigging, fencing & architectural industry use.
A full line of type available including Hook & Hook, Eye & Eye, Hook & Eye etc. in various sizes from small size turnbuckle to big size turnbuckle.
*Straight or in-line pull only.
| Technical Notes | Conform to US Fed. Spec.（ASTM F1145-92） |
| Material | Stainless steel AISI 316/AISI 304 |
| Size | 1/4×4” , 5/16×4.5” , 3/8×6” , 1/2×6” , 1/2×9” , 1/2×12” , 5/8×6” , 5/8×9” , 5/8×12”, 3/4×6” , 3/4×9” , 3/4×12” , 7/8×6” , 7/8×12” , 1×6” , 1×12” , 1-1/4×12” , 1-1/2×12” |
| Processing | Cast / Forged |
| Surface Finished | Highly Polishing |
| Tips | Rust/corrosion resistant,Straight or in-line pull only. |

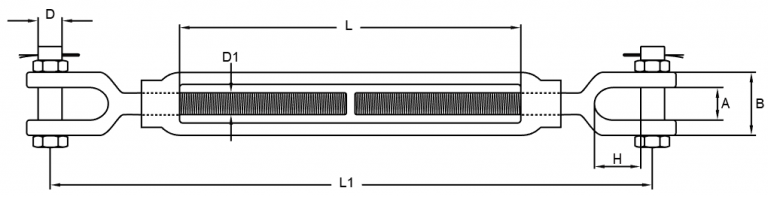

| Size (In) | L (In) | L1 (In) | A (In) | D (In) | B (In) | H (In) |
| 1/4″ | 4 | 7.15 | 0.45 | 0.24 | 0.9 | 0.62 |
| 5/16″ | 4.5 | 8.61 | 0.49 | 0.24 | 1 | 0.87 |
| 3/8″ | 6 | 10.45 | 0.53 | 0.31 | 1.08 | 0.87 |
| 1/2″ | 6 | 11.88 | 0.67 | 0.39 | 1.36 | 1.06 |
| 1/2″ | 9 | 14.88 | 0.67 | 0.39 | 1.36 | 1.06 |
| 1/2″ | 12 | 17.88 | 0.67 | 0.39 | 1.36 | 1.06 |
| 5/8″ | 6 | 13.3 | 0.81 | 0.47 | 1.68 | 1.31 |
| 5/8″ | 9 | 16.3 | 0.81 | 0.47 | 1.68 | 1.31 |
| 5/8″ | 12 | 19.3 | 0.81 | 0.47 | 1.68 | 1.31 |
| 3/4″ | 6 | 14.62 | 1.02 | 0.63 | 1.97 | 1.5 |
| 3/4″ | 9 | 17.62 | 1.02 | 0.63 | 1.97 | 1.5 |
| 3/4″ | 12 | 20.62 | 1.02 | 0.63 | 1.97 | 1.5 |
| 7/8″ | 6 | 16 | 1.18 | 0.79 | 2.43 | 1.75 |
| 7/8″ | 12 | 22 | 1.18 | 0.79 | 2.43 | 1.75 |
| 1″ | 6 | 17.6 | 1.3 | 0.87 | 2.63 | 2.06 |
| 1″ | 12 | 23.6 | 1.3 | 0.87 | 1.3 | 2.06 |
| 1-1/4″ | 12 | 26.46 | 1.83 | 1.12 | 3.6 | 2.81 |
| 1-1/2″ | 12 | 27.88 | 2.05 | 1.38 | 3.96 | 2.81 |
