Stainless Steel Eye & Hook Turnbuckle European Type.
Also called as Eye & Hook Rigging Screw European Type.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this turnbuckle is a common type of rigging hardware.
It has a precision cast body and the eye & hook are formed and cold forged and the eye is welded.
Stainless Steel Turnbuckle Eye & Hook European Type provides tension by adjusting the length for supporting ropes, wire ropes, cables and chains .
With turnbuckle hook and eye on each end, they have the same break strength of the eye & eye turnbuckle or jaw & jaw turnbuckle.
As a type of turnbuckle, it has the fast connect/disconnect properties, optimal hardware for marine rigging, fencing & architectural industry use.
A full line of type available including Jaw & Jaw, Eye & Eye, Hook & Hook etc. in various sizes from small size turnbuckle to big size turnbuckle.
*Straight or in-line pull only.
| Technical Note | European Type |
| Material | Stainless steel 316 or 304 |
| Size | M5 M6 M8 M10 M12 M16 M20 |
| Processing | Eye: Welding / Machining Body: Cast / Forge Hook: Stamping / Machining |
| Surface Finished | Highly Polishing |
| Tips | Rust/corrosion resistant,Straight or in-line pull only. |

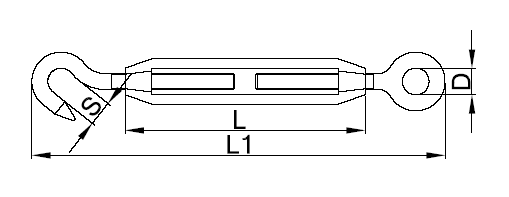

| Size | L(mm) | L1(mm) | D(mm) | S(mm) | WLL(kg) |
| M5 | 70 | 120 | 8 | 8 | 40 |
| M6 | 90 | 150 | 10 | 9 | 80 |
| M8 | 120 | 200 | 14 | 11 | 140 |
| M10 | 150 | 240 | 16 | 12 | 220 |
| M12 | 200 | 310 | 18 | 14 | 300 |
| M16 | 250 | 390 | 25 | 16 | 600 |
| M20 | 300 | 440 | 30 | 18 | 900 |
