Stainless Steel Turnbuckle European Type Hook & Hook.
Also called as Hook & Hook Rigging Screw European Type.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance, this turnbuckle is a common type of rigging hardware.
Stainless Steel Turnbuckle Hook & Hook European Type provides tension by adjusting the length for supporting ropes, wire ropes, cables and chains .
With turnbuckle hooks on each end, they have the same break strength of the eye & eye turnbuckle or jaw & jaw turnbuckle.
As a type of turnbuckle, it has the fast connect/disconnect properties, optimal hardware for marine rigging, fencing & architectural industry use.
A full line of type available including Jaw & Jaw, Eye & Eye, Hook & Eye etc. in various sizes from small size turnbuckle to big size turnbuckle.
*Straight or in-line pull only.
Technical Notes | European Type | ||||
Material | Stainless steel 316 or stainless steel 304 | ||||
Size | M5 M6 M8 M10 M12 M16 M20 | ||||
Processing | Body: Cast / Forged Hook: Welding / Precision Cast | ||||
Surface Finished | Highly Polishing | ||||
Tips | Rust/Corrosion resistant,Straight or in-line pull only |

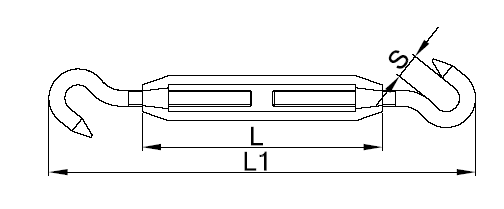

Size | L(mm) | L1(mm) | S(mm) | WLL(kg) |
M5 | 70 | 120 | 8 | 40 |
M6 | 90 | 150 | 9 | 80 |
M8 | 120 | 200 | 11 | 140 |
M10 | 150 | 240 | 12 | 220 |
M12 | 200 | 310 | 14 | 300 |
M16 | 250 | 390 | 16 | 600 |
M20 | 300 | 440 | 18 | 900 |
