Stainless Steel Din1480 Hook & Eye Turnbuckle.
Stainless Steel DIN1480 Hook & Eye Turnbuckle, also called as Tensioner, Turn Buckle, Straining Screw, Barrel Strainer, or Open Body Rigging Screw.
This Eye & Hook Turnbuckle (DIN1480) has a precision cast body, the eye and hook are welded and formed.
They are ideal for marine and industrial applications.
A full line of type available including Jaw & Jaw, Hook & Hook, Eye & Eye etc. in various sizes from small turnbuckle to big turnbuckle.
*Straight or in-line pull only.
| Technical Notes | Conform to DIN 1480 |
| Material | Stainless Steel 316 or Stainless Steel 304 |
| Size | M5, M6, M8, M10, M12, M16, M20 |
| Processing | Body: Cast / Forged Eye: Weld / Forged Hook: Machined / Stamped / Precision Cast |
| Surface Finished | Highly Polishing |
| Tips | Rust/Corrosion resistant, Straight or in-line pull only |
| Origin | China |

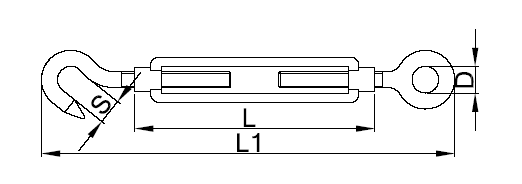

| Size | L(mm) | L1(mm) | D(mm) | S(mm) | WLL(kg) |
| M5 | 90 | 140 | 8 | 7 | 40 |
| M6 | 110 | 170 | 10 | 9 | 80 |
| M8 | 110 | 180 | 12 | 10 | 140 |
| M10 | 125 | 210 | 14 | 11 | 220 |
| M12 | 125 | 240 | 18 | 14 | 300 |
| M16 | 170 | 320 | 22 | 18 | 600 |
| M20 | 200 | 370 | 25 | 20 | 900 |
