Stainless Steel Turnbuckle DIN1480 Eye & Eye.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
Stainless Steel Turnbuckle DIN1480 Eye & Eye is constructed with a long sleeve with internal screw thread that accepts a variety of fittings used to pull anchor point closer together or push them appart by turning the turnbuckle body.
Stainless Steel Turnbuckle DIN1480 Eye & Eye also supplys tension by adjusting the length for supporting ropes, wire ropes, cables and chains .
As the most popular turnbuckle, it is widely used as necessary hardware for marine rigging and architecture industries & applications.
A full line of type available including Jaw & Jaw, Hook & Hook, Hook & Eye etc. in various sizes from small turnbuckle to big turnbuckle.
*Straight or in-line pull only.
| Technical Notes | Conform to DIN 1480 |
| Material | Stainless Steel 316 or 304 |
| Size | M5, M6, M8, M10, M12, M16, M20 |
| Processing | Body: Cast / Forge Eye: Weld / Forge |
| Surface Finished | Highly Polishing |
| Tips | Rust/corrosion resistant, Straight or in-line pull only. |
| Origin | China |

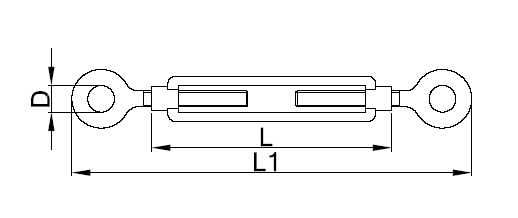

| Size | L(mm) | L1(mm) | D(mm) | WLL(kg) |
| M5 | 90 | 140 | 8 | 170 |
| M6 | 110 | 170 | 10 | 375 |
| M8 | 110 | 180 | 12 | 575 |
| M10 | 125 | 210 | 14 | 775 |
| M12 | 125 | 240 | 18 | 1100 |
| M16 | 170 | 320 | 22 | 2025 |
| M20 | 200 | 370 | 25 | 2750 |
