DIN 580 Lifting Eye Bolt Stainless Steel.
DIN 580 Eye Bolt Stainless Steel is commonly used to attach rope or cable to a fixed structure, threaded on one end for a more secure fit.
It is the perfect choice for a variety of different purposes, quite popular in the marine rigging industry because the stainless steel has excellent rust/corrosion resistant performance.
It is marked with safe working load specification and provide a comprehensive solution.
Various sizes are available.
*Not suitable for overhead lifting or hoisting.
| Technical Notes | Conform To DIN580 |
| Material | Stainless Steel AISI 316 / AISI 304 |
| Processing | Cast |
| Surface Finished | Highly Polishing |
| Size | M6, M8, M10, M12, M16, M20, M24, M30, M36 |
| Note | Not to be used for overhead lifting or hoisting. |

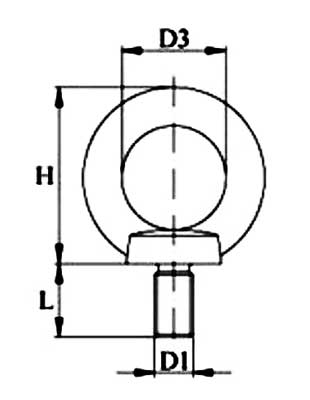

| D1 | D3 | H | L | Min. BL |
| mm | kn | |||
| M6 | 16 | 28 | 11 | 6.2 |
| M8 | 20 | 33 | 13 | 8.2 |
| M10 | 25 | 42 | 17 | 13.5 |
| M12 | 30 | 51 | 20.5 | 20 |
| M16 | 35 | 60 | 27 | 41.2 |
| M20 | 40 | 68.8 | 30 | 70.6 |
| M24 | 50 | 86.8 | 36 | 105.9 |
| M30 | 60 | 104.8 | 45 | 188.3 |
| M36 | 70 | 122.6 | 54 | 270.7 |
