Stainless Steel DIN 580 Lifting Eye Bolt.
The DIN 580 eye bolt is the mark which refers to the thread size.
Stainless steel AISI 316 & AISI 304 are available materials commonly used on the marine rigging field due to the stainless steel excellent rust/corrosion resistant performance.
Stainless Steel DIN 580 Eye Bolt is most ideal application to attach rope, cable or chain to a fixed structure, threaded on one end for a more secure fit, making it perfect choice for a variety of different purposes.
*Not suitable to be used for overhead lifting.
| Technical Notes | Eye Bolt DIN580 |
| Material | Stainless Steel (AISI 316 / AISI 304) |
| Processing | Cast |
| Surface Finished | Highly Polishing |
| Size | 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1", 1-3/16", 1-7/16" |
| Note | Not to be used for overhead lifting |

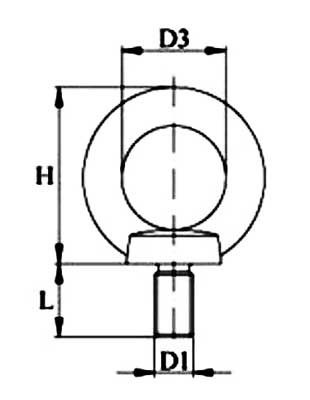

Specification- Stainless Steel DIN 580 Lifting Eye Bolt UNC Thread
| D1 (in) | D3 (in) | H (in) | L (in) | Min.BL |
| (lbs) | ||||
| 3/16″ | 0.590” | 0.984″ | 0,433″ | 750 |
| 1/4″ | 0.630″ | 1.102″ | 0,433″ | 1370 |
| 5/16″ | 0.787″ | 1.299″ | 0.512″ | 1810 |
| 3/8″ | 0.984″ | 1.654″ | 0,669” | 2980 |
| 1/2” | 1.181” | 2.008″ | 0.807″ | 4410 |
| 5/8″ | 1.378″ | 2.362″ | 1.063” | 9100 |
| 3/4″ | 1.575″ | 2.709″ | 1,181″ | 15590 |
| 1″ | 1.969″ | 3.417″ | 1.417″ | 23380 |
| 1-3/16″ | 2.362′ | 4.126″ | 1,772′ | 41570 |
| 1-7/16″ | 2.756” | 4.827″ | 2,126” | 59760 |
