Stainless Steel Lifting Eye Nut UNC Thread DIN 582.
Stainless Steel DIN 582 Eye Nut is greatly popular in the marine industry as it is made of stainless steel 316 or 304 which has excellent rust/corrosion resistance.
DIN 582 lifting eye nut is suitable for lifting & suspending loads.
The eye nut must be of fully screwd in to achieve a perfect contact.
*Never to be used for overhead lifting.
| Technical Notes | Conform To DIN582 |
| Material | Stainless Steel (AISI 316/ AISI 304) |
| Processing | Precision Cast |
| Surface Finished | Highly Polishing |
| Size | 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1", 1-3/16", 1-7/16" |
| Tips | Not to be used for overhead lifting. |

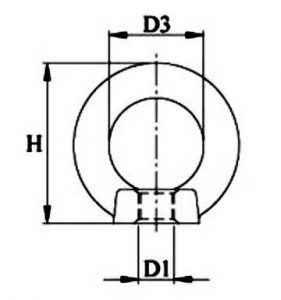

| D1 (in) | D3 (in) | H (in) | Min.BL |
| lbs | |||
| 3/16″ | 0.590″ | 0.984″ | 750 |
| 1/4″ | 0.630″ | 1.102″ | 1370 |
| 5/16” | 0.787″ | 1.299″ | 1810 |
| 3/8″ | 0.984″ | 1.654″ | 2980 |
| 1/2″ | 1.181″ | 2.008″ | 4410 |
| 5/8″ | 1.378″ | 2.362″ | 9100 |
| 3/4” | 1.575″ | 2.709″ | 15590 |
| 1″ | 1.969″ | 3.417″ | 23380 |
| 1-3/16” | 2.362″ | 4.126″ | 41570 |
| 1-7/16″ | 2.756″ | 4.827″ | 59760 |
