Eye Slip Hook with Latch Grade 43 High Test.
Also called as high test eye slip hook with latch, made of superior carbon steel.
It is designed to make quick connection with chain in industrial and construction applications, with latch to avoid the hook's slipping off.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Superior Carbon Steel |
| Safety Factor | 4:1 |
| Processing | Body : Drop Forged / Quenched and Tempered Latch : Stamping |
| Surface Finished | Body : Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color Latch : Stainless steel |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ |
| Tips | Can customize according to detailed requirements. |

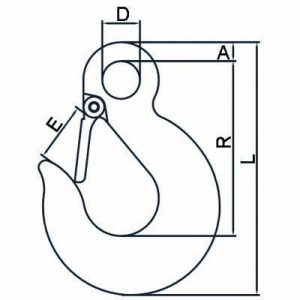

Size in | WEIGHT | WLL | A±0.3mm | D±0.5mm | R±1mm | E±1mm | L±1mm |
| lbs | lbs | ||||||
| 1/4″ | 0.22 | 2600 | 8.5 | 13 | 65.5 | 18.5 | 93 |
| 5/16″ | 0.3 | 3900 | 9 | 16 | 74 | 24.5 | 107 |
| 3/8″ | 0.67 | 5400 | 10.25 | 18 | 86.5 | 32.5 | 123.8 |
| 7/16″ | 0.71 | 7200 | 12.7 | 20.6 | 98.8 | 32 | 142.5 |
| 1/2″ | 0.95 | 9200 | 14.5 | 23 | 109.5 | 41.5 | 156 |
