Clevis Slip Hook with Latch Grade 43.
Made of superior carbon steel, Clevis Slip Hook with latch Grade 43 is designed to make quick connection with chain in industrial and construction applications, with latch to avoid the hook's slipping off.
It is commonly used for load securement with tie-down chains.
*Not suitable for overhead lifting.
| Technical Notes | Comfrom to U.S. Fed. Spec. |
| Material | Superior Carbon Steel |
| Safety Factor | 4:1 |
| Processing | Body : Drop Forged / Quenched and Tempered ; Latch : Stamping |
| Surface Finished | Body : Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color ; Latch : Dacroment / Stainless steel |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 5/8″ , 3/4″ |
| Tips | Can customize according to detailed requirements; Not to be used for overhead lifting. |

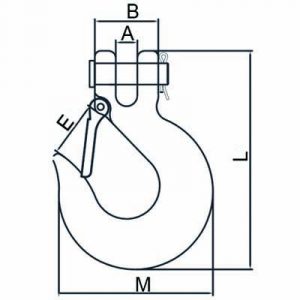

Weight (lbs) | WLL (lbs) | A±1(mm) | B±1.5(mm) | L±3(mm) | M±2(mm) | E±2(mm) |
| G43 | ||||||
| 0.53 | 2600 | 11.3 | 27 | 103.5 | 70.5 | 21.5 |
| 0.77 | 3900 | 13 | 32 | 117 | 79 | 25.5 |
| 1.26 | 5400 | 15.5 | 40 | 134 | 93.5 | 33.5 |
| 2.25 | 7200 | 15 | 44 | 151.5 | 111 | 36 |
| 3.06 | 9200 | 19 | 48 | 168 | 124.5 | 37.5 |
| 5.18 | 13000 | 18.5 | 58.7 | 200.5 | 143 | 46.5 |
| 12.4 | 20200 | 30 | 81 | 256 | 188 | 58 |
