High Test Eye Slip Hook Grade 43.
Made of superior carbon steel, Eye Slip Hook Grade 43 is designed to make quick connection with chain.
Slip hook has wide throat and is widely used for towing, pulling and securing applications.
*Not suitalbe for overhead lifting.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Material | Superior Carbon Steel |
| Safety Factor | 4:1 |
| Processing | Drop Forged / Quenched and Tempered |
| Surface Finished | Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color |
| Size | 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 5/8″ , 3/4″ |
| Tips | Not to be used for overhead lifting. |

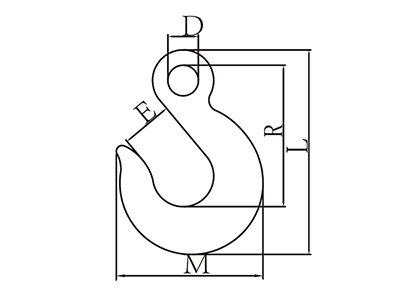

Weight (lbs) | WLL (lbs) | D±0.3(mm) | R±1(mm) | L±1(mm) | M±1.2(mm) | E±1(mm) |
| G43 | ||||||
| 0.40 | 2600 | 12.7 | 65 | 92 | 68.5 | 23 |
| 0.64 | 3900 | 16 | 72.5 | 106 | 76 | 26 |
| 1.11 | 5400 | 18 | 86.5 | 124 | 89.5 | 33 |
| 1.56 | 7200 | 20.5 | 98.5 | 142 | 108 | 40 |
| 2.10 | 9200 | 23 | 107 | 158 | 116.5 | 41 |
| 3.90 | 13000 | 28.8 | 132.5 | 195 | 143 | 52 |
| 6.93 | 20200 | 35 | 147.5 | 222 | 169 | 55 |
