Clevis Lug Link Grade 70 Australia Standard.
Clevis Lug Link combined with Grade 70 chain is an effective way to restraint heavy load for transport operation.
Made of superior alloy steel, it is commonly used for drag Chain application.
*Grade 70 components are designed for lashing and pulling applications only.
*Not suitalbe to use for lifting.
| Technical Notes | Conform to AS 4344 standard |
| Material | Superior Alloy Steel |
| Processing | Forged |
| Surface Finished | Gold zinc plated,Hot Dip Galvanized |
| Size | 8mm , 10mm , 13mm |
| Origin | China |

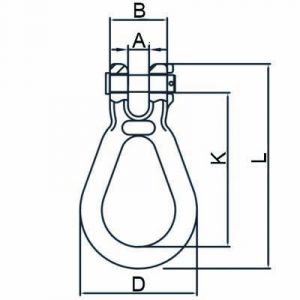

| Size | N.W (kg) | L.C. (kg) | B.L (kg) | B±1.5 (mm) | A±0.5 (mm) | D±2 (mm) | K±2 (mm) | L±2 (mm) |
| 8mm | 0.555 | 3800 | 7600 | 35 | 140 | 54 | 9.4 | 9 |
| 10mm | 0.63 | 6000 | 12000 | 36 | 142 | 54 | 11 | 11 |
| 13mm | 0.93 | 9000 | 18000 | 48.5 | 203 | 60 | 17 | 17.5 |
